Voltmeter Gauge with Digital Display
- Unit price
- / per
Description

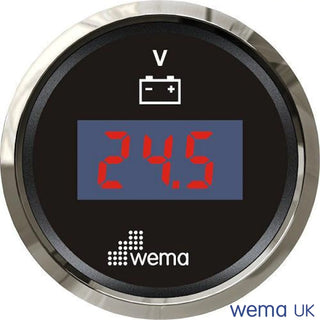

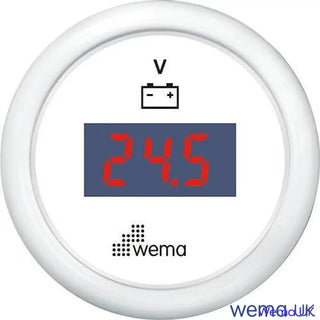

The Wema Voltmeter Gauge with Digital Display is as dependable as the rest of the Wema range, IP67 rated - submersible in up to 1m water - and sealed in a standard size gauge housing.
The Digital Voltmeter works with both 12v and 24v circuits.
Available in all standard face and bezel colours to ensure continuity with all other gauges.
The digital voltmeter is suitable for use on land or at sea in a multitude of applications.
INSTALLATION̴
Specifications- Voltmeter Gauge with Digital Display
- 52mm diameter gauge
- IP67
- 12v or 24v
- Choice of face and bezel colours.

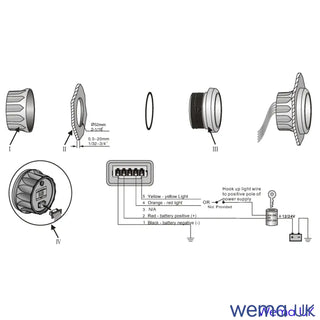

Yellow - yellow̴ light
Orange - red light
Red - to positive (battery +)
Blue - to ground (battery -)
1. Cut a 52mm (2 1/16") diameter hole in the panel.
You will need a minimum clearance of 55mm (2 3/16") behind the panel to fit the gauge.
2. Remove fastening ring and insert gauge through panel from the front, fit and tighten fastening ring from the rear.
3. Connect wires according to wiring instruction.
Select either Orange or Yellow wires for backlighting. Wire colour corresponds with backlight colour.
4. Insert wire harness into port at the back of the gauge.
