Analogue Voltmeter
Move your mouse over image or click to enlarge
Analogue Voltmeter Analogue Voltmeter Analogue Voltmeter Analogue Voltmeter Analogue Voltmeter Analogue Voltmeter Analogue Voltmeter Analogue Voltmeter Analogue Voltmeter

Analogue Voltmeter

    PRODUCT CODE:
  • £36.48


  • Analogue Voltmeter

    • 52mm diameter gauge
    • 12v or 24v
    • Choice of colours.

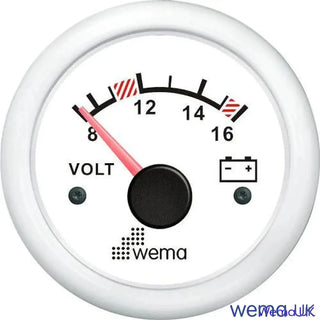

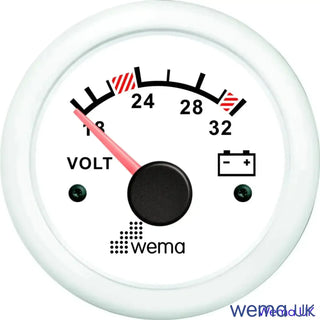

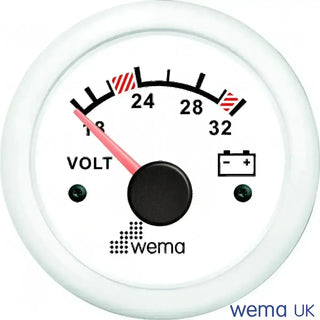

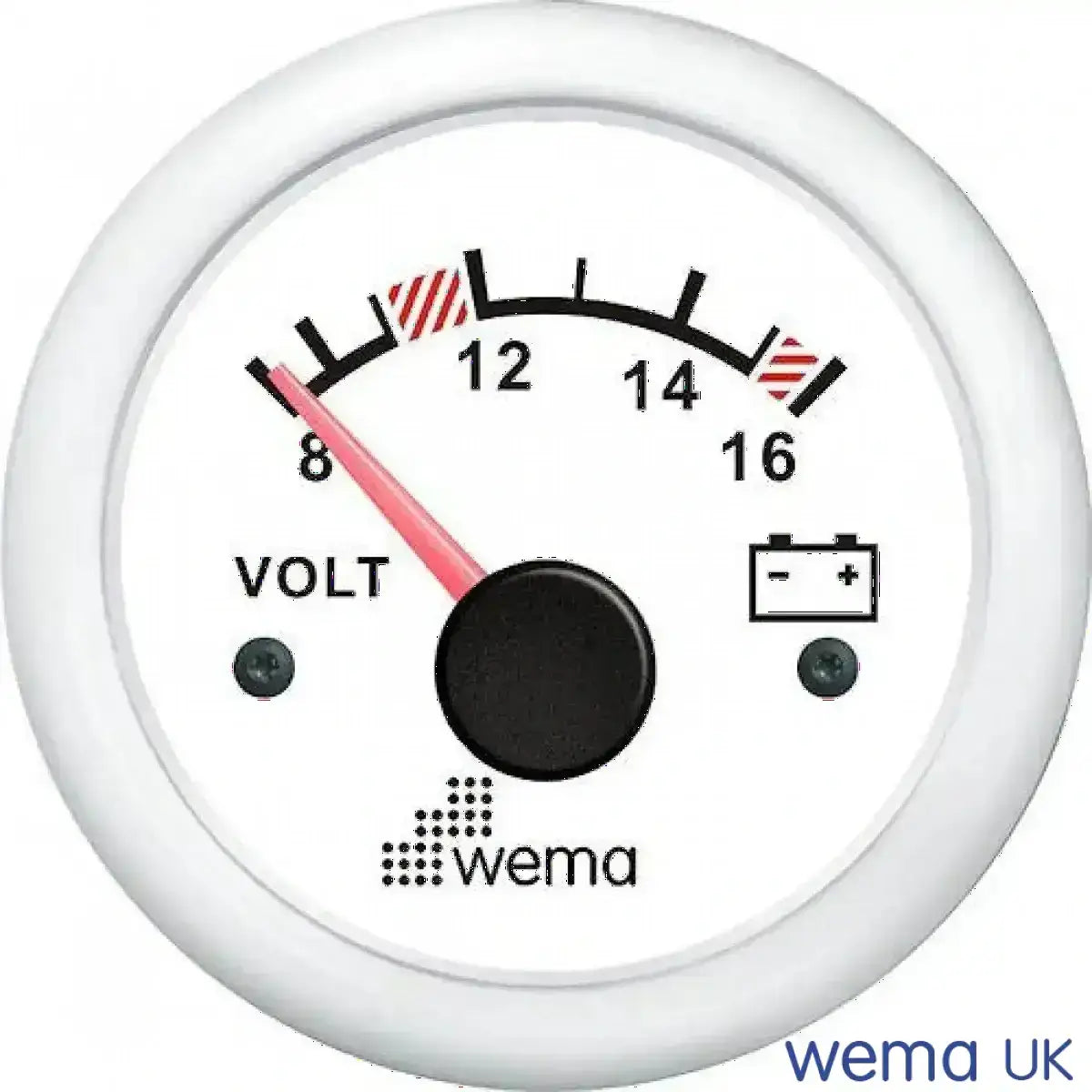

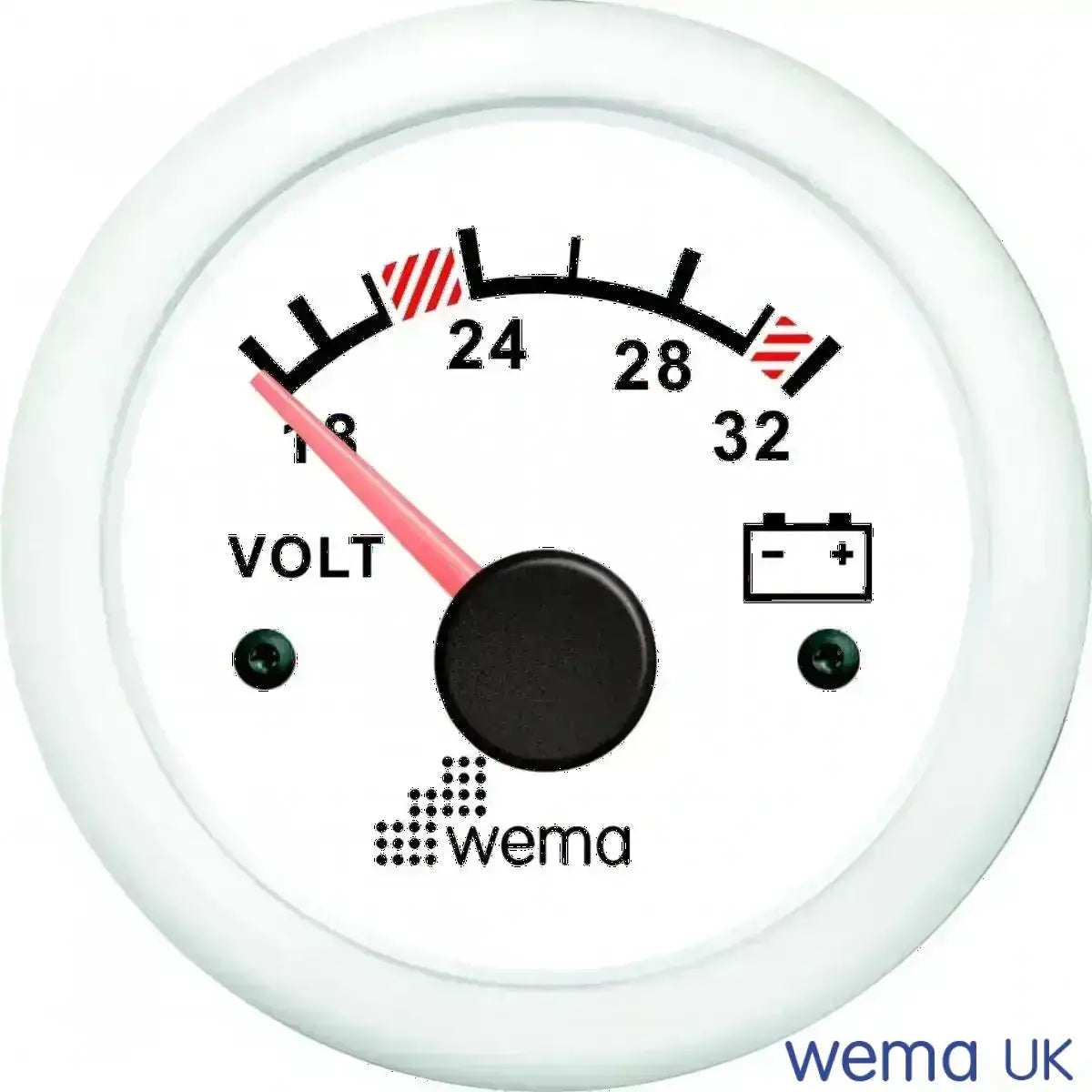

    Analogue Voltmeter available for 12v and 24v circuits.

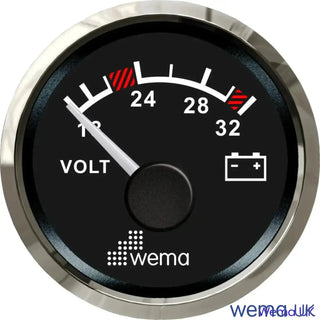

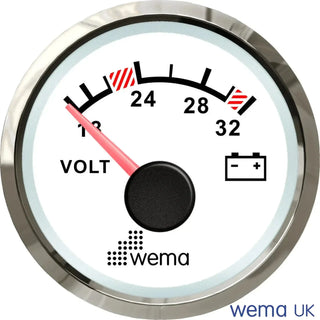

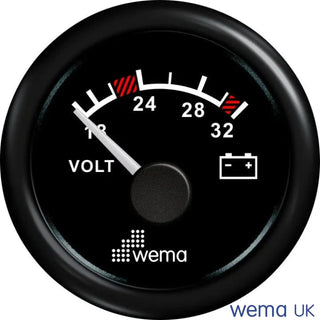

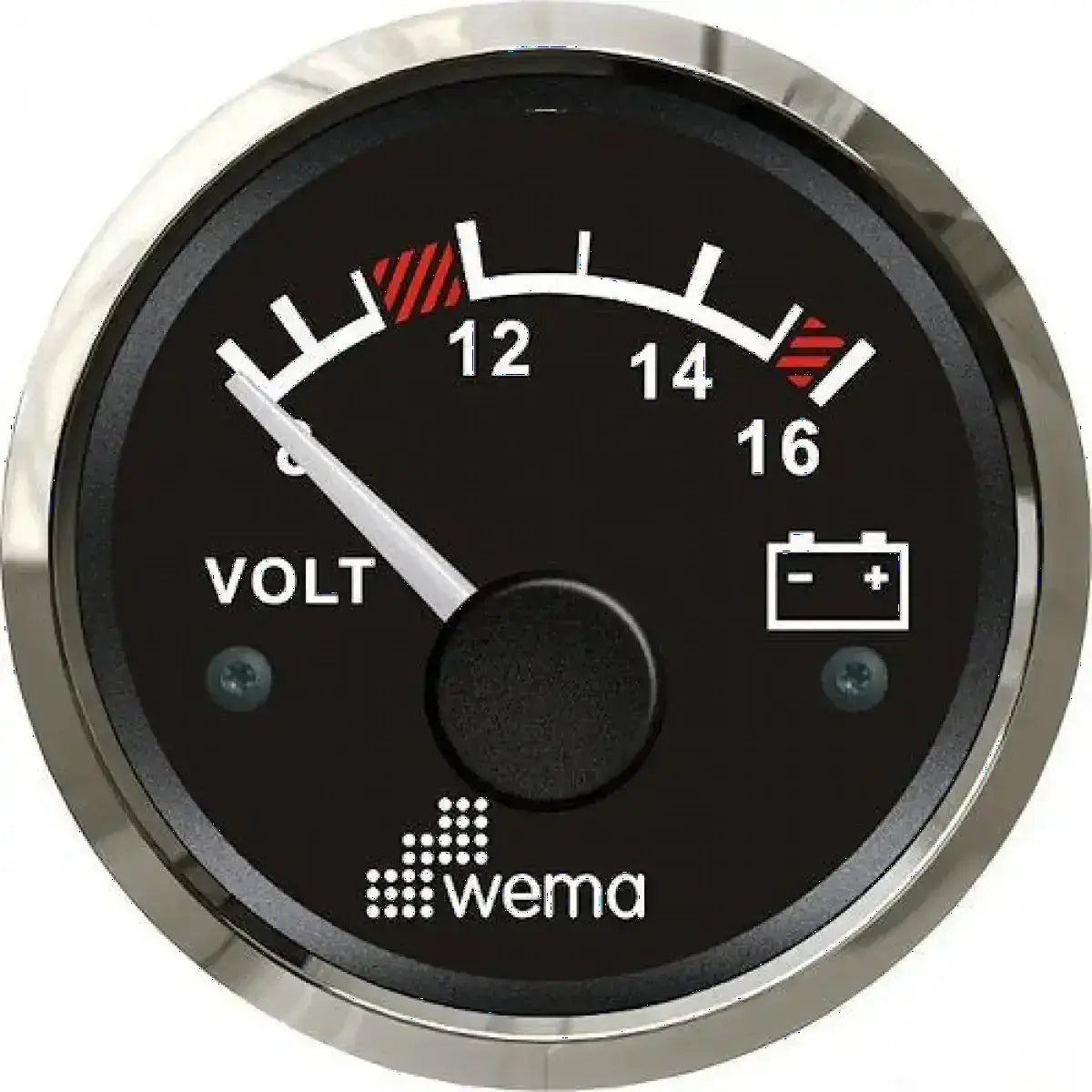

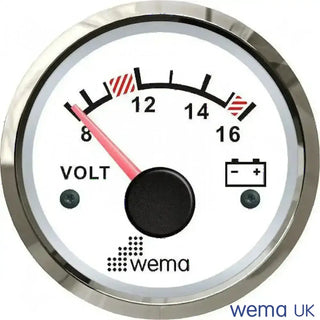

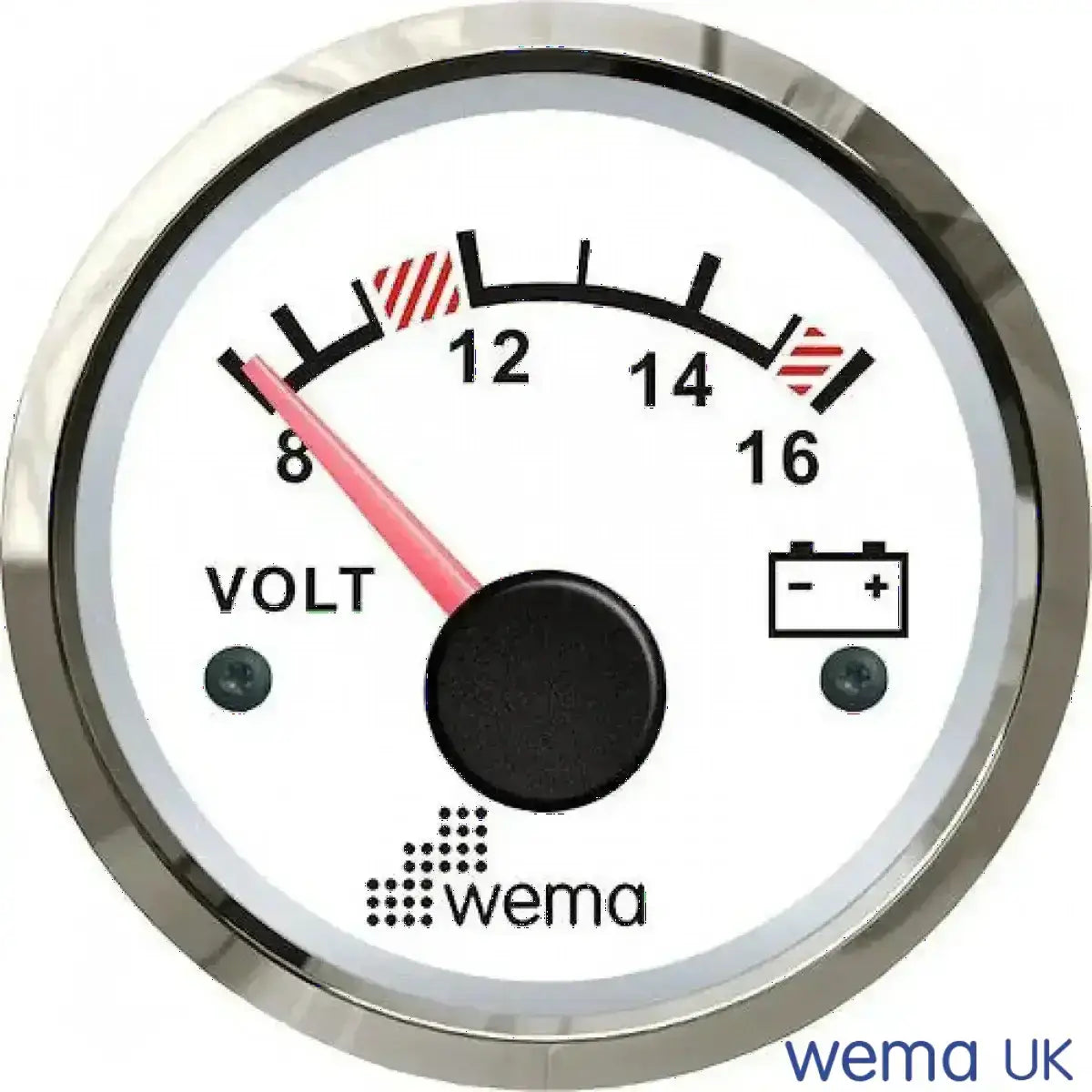

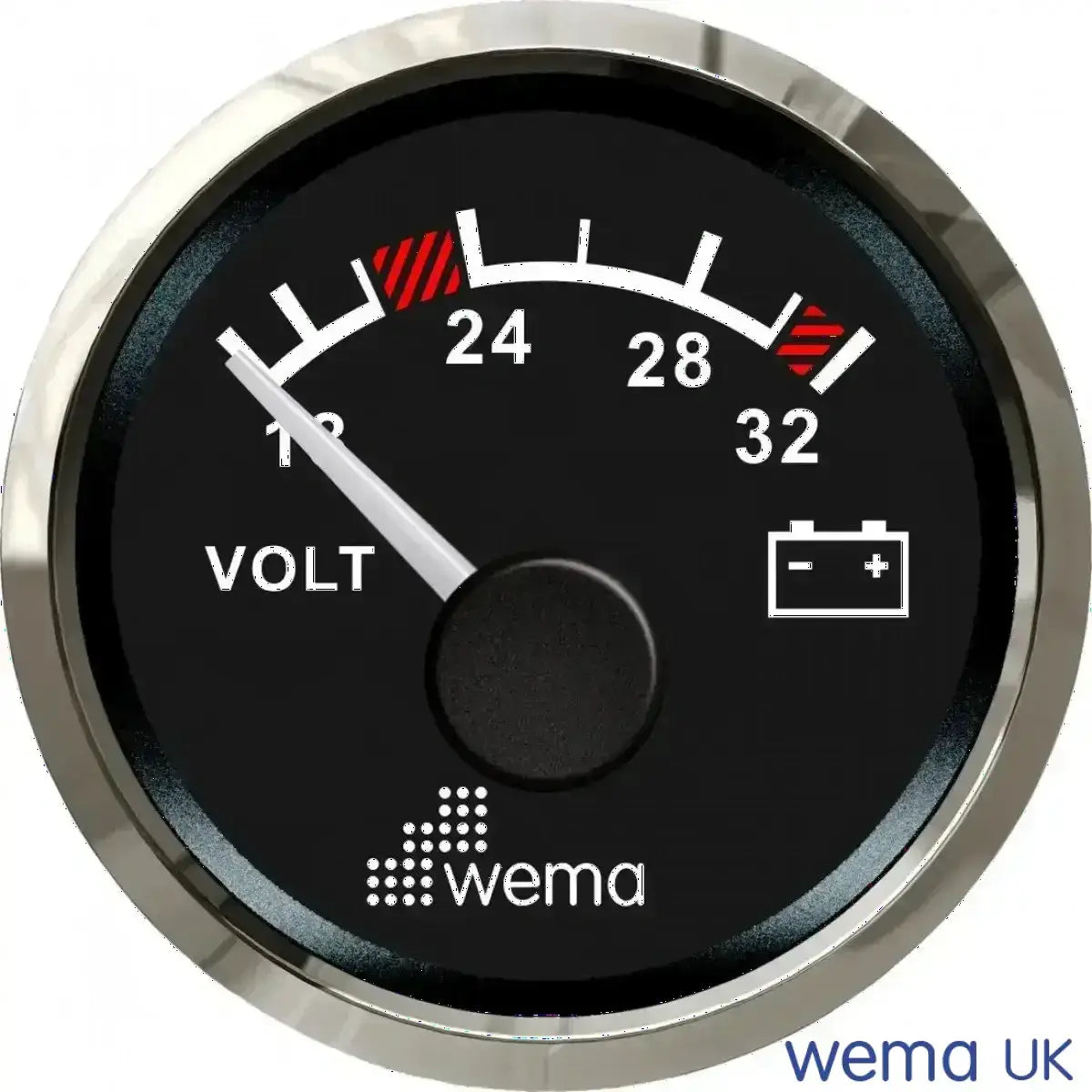

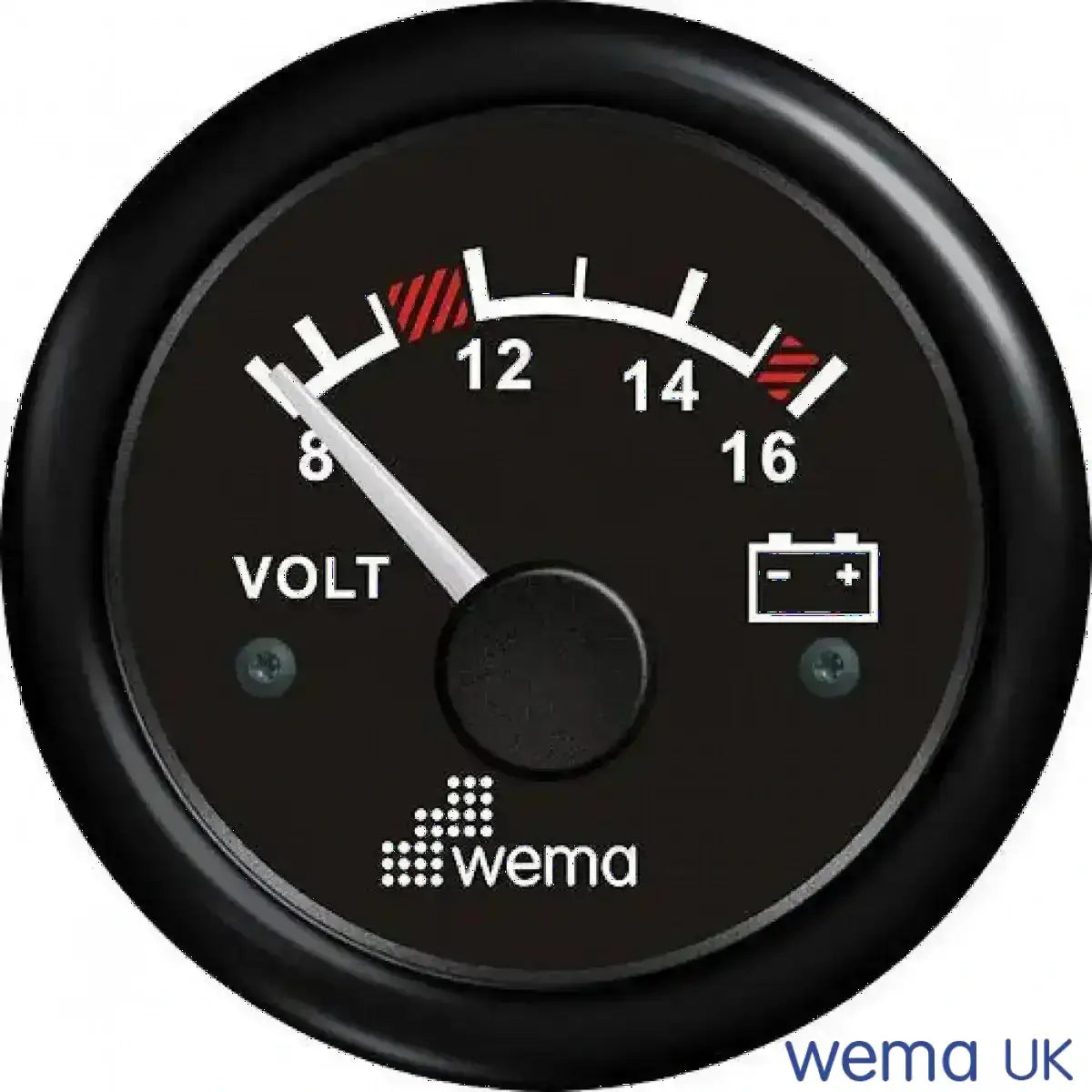

    Available in a choice of face and bezel colours.

    24v voltmeter features a stepper motor for smooth and accurate display.





    INSTALLATION̴



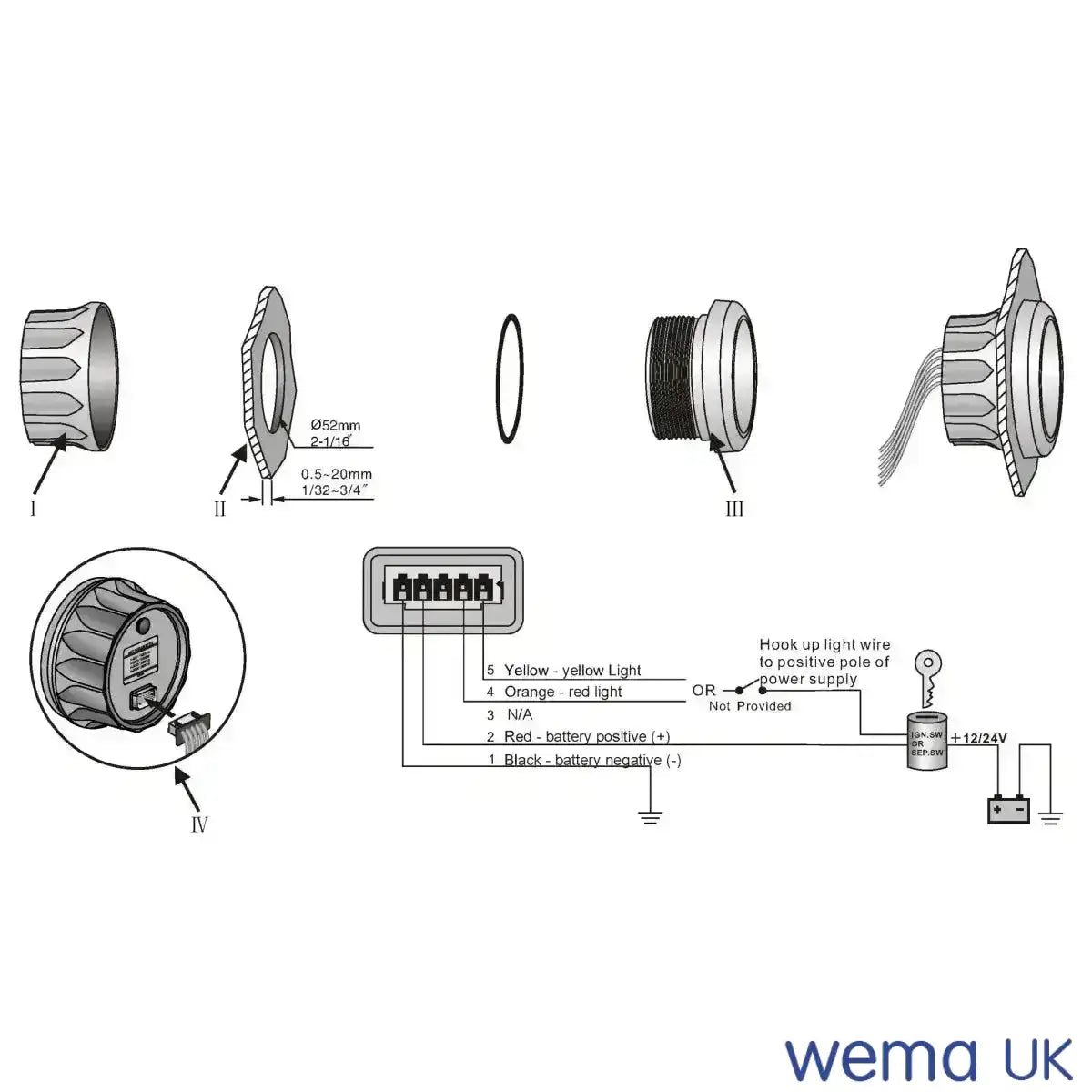

    WIRING INSTRUCTIONS

    Yellow       -    yellow̴ light
    Orange     -    red light
    Red           -    to positive (+)
    Blue          -    to ground (-)

    ̴

    INSTALLATION INSTRUCTIONS

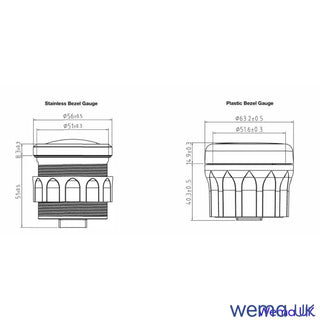

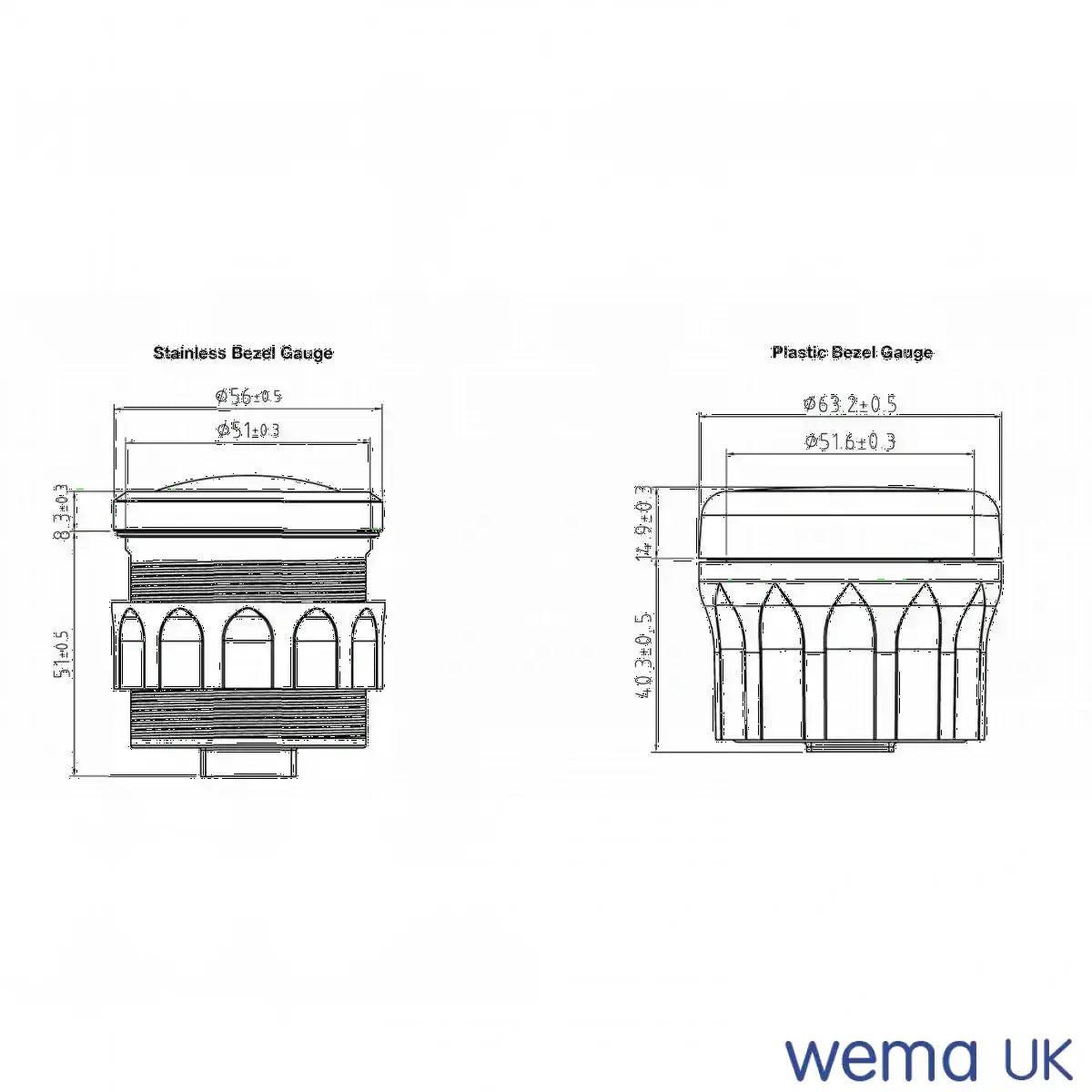

    1. Cut a 52mm (2 1/16") diameter hole in the panel.
    You will need a minimum clearance of 55mm (2 3/16") behind the panel to fit the gauge.

    2. Remove fastening ring and insert gauge through panel from the front, fit and tighten fastening ring from the rear.

    3. Connect wires according to wiring instruction.

    Select either Orange or Yellow wires for backlighting. Wire colour corresponds with backlight colour.

    4. Insert wire harness into port at the back of the gauge.
