Water Level Gauge
Move your mouse over image or click to enlarge
Water Level Gauge Water Level Gauge Water Level Gauge Water Level Gauge Water Level Gauge

Water Level Gauge

    PRODUCT CODE:
  • £33.79


  • ANALOGUE WATER GAUGE

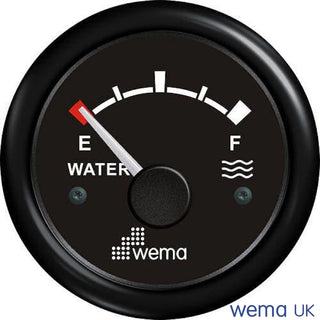

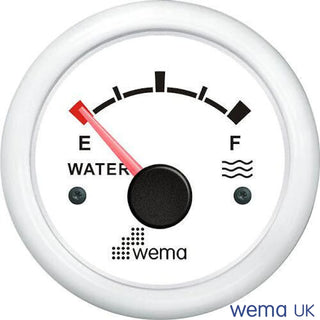

    Analogue water level gauge for monitoring of fresh water tank level.

    Works with either S3 or S5 senders. Available in European (0-190ohms) or US (240-20ohms) specification.

    Available in all standard face and bezel colours to ensure continuity with all other gauges.



    • Water level
    • 52mm diameter gauge
    • 12v/24v
    • Marine grade - IP67 waterproof
    • 0-190 ohms or 240-30 ohms
    • Backlight - Red or Yellow
    • Choice of face & bezel colours





    INSTALLATION̴



    WIRING INSTRUCTIONS

    Yellow       -    yellow̴ light
    Orange     -    red light
    Black        -    to sensor
    Red           -    to positive (+)
    Blue          -    to ground (-)

    INSTALLATION INSTRUCTIONS

    1. Cut a 52mm (2 1/16") diameter hole in the panel.
    You will need a minimum clearance of 55mm (2 3/16") behind the panel to fit the gauge.

    2. Remove fastening ring and insert gauge through panel from the front, fit and tighten fastening ring from the rear.

    3. Connect wires according to wiring diagram.

    Select either Orange or Yellow wires for backlighting. Wire colour corresponds with backlight colour.

    * Note the use of dropping resistors for 24V circuit.

    4. Insert wire harness into port at the back of the gauge.
