Trim Tab Position Gauge

£71.79

Shipping calculated at checkout.

Face colour

Black

White

Bezel colour

Stainless

Black

White

Quantity

Wema Guaranteed

Worldwide shipping

In stock, ready to ship

[{"id":29346458503,"title":"Black \/ Stainless","option1":"Black","option2":"Stainless","option3":null,"sku":"110925","requires_shipping":true,"taxable":true,"featured_image":{"id":48324837048614,"product_id":8875831559,"position":3,"created_at":"2024-09-02T16:26:57+01:00","updated_at":"2024-09-02T16:26:57+01:00","alt":"Trim Position Gauge - Black \/ Stainless","width":2048,"height":2048,"src":"\/\/wema.co.uk\/cdn\/shop\/files\/trim-tab-position-gauge-black-stainless-wema-uk-110925-222.jpg?v=1725290817","variant_ids":[29346458503]},"available":true,"name":"Trim Tab Position Gauge - Black \/ Stainless","public_title":"Black \/ Stainless","options":["Black","Stainless"],"price":7179,"weight":150,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"continue","barcode":"29346458503","featured_media":{"alt":"Trim Position Gauge - Black \/ Stainless","id":40627854901542,"position":3,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/wema.co.uk\/cdn\/shop\/files\/trim-tab-position-gauge-black-stainless-wema-uk-110925-222.jpg?v=1725290817"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":29346458375,"title":"Black \/ Black","option1":"Black","option2":"Black","option3":null,"sku":"110922","requires_shipping":true,"taxable":true,"featured_image":{"id":48324836032806,"product_id":8875831559,"position":2,"created_at":"2024-09-02T16:26:52+01:00","updated_at":"2024-09-02T16:26:52+01:00","alt":"Trim Position Gauge - Black","width":2048,"height":2048,"src":"\/\/wema.co.uk\/cdn\/shop\/files\/trim-tab-position-gauge-black-wema-uk-110922-601.jpg?v=1725290812","variant_ids":[29346458375]},"available":true,"name":"Trim Tab Position Gauge - Black \/ Black","public_title":"Black \/ Black","options":["Black","Black"],"price":6547,"weight":150,"compare_at_price":null,"inventory_quantity":10,"inventory_management":"shopify","inventory_policy":"continue","barcode":"29346458375","featured_media":{"alt":"Trim Position Gauge - Black","id":40627854344486,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/wema.co.uk\/cdn\/shop\/files\/trim-tab-position-gauge-black-wema-uk-110922-601.jpg?v=1725290812"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":29346458695,"title":"White \/ Stainless","option1":"White","option2":"Stainless","option3":null,"sku":"110924","requires_shipping":true,"taxable":true,"featured_image":{"id":48324835606822,"product_id":8875831559,"position":1,"created_at":"2024-09-02T16:26:47+01:00","updated_at":"2024-09-02T16:26:47+01:00","alt":"Trim Position Gauge - White \/ Stainless","width":2048,"height":2048,"src":"\/\/wema.co.uk\/cdn\/shop\/files\/trim-tab-position-gauge-white-stainless-wema-uk-110924-871.jpg?v=1725290807","variant_ids":[29346458695]},"available":true,"name":"Trim Tab Position Gauge - White \/ Stainless","public_title":"White \/ Stainless","options":["White","Stainless"],"price":7179,"weight":150,"compare_at_price":null,"inventory_quantity":7,"inventory_management":"shopify","inventory_policy":"continue","barcode":"29346458695","featured_media":{"alt":"Trim Position Gauge - White \/ Stainless","id":40627854115110,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/wema.co.uk\/cdn\/shop\/files\/trim-tab-position-gauge-white-stainless-wema-uk-110924-871.jpg?v=1725290807"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":29346458631,"title":"White \/ White","option1":"White","option2":"White","option3":null,"sku":"110923","requires_shipping":true,"taxable":true,"featured_image":{"id":48324837835046,"product_id":8875831559,"position":4,"created_at":"2024-09-02T16:27:02+01:00","updated_at":"2024-09-02T16:27:02+01:00","alt":"Trim Position Gauge - White","width":2048,"height":2048,"src":"\/\/wema.co.uk\/cdn\/shop\/files\/trim-tab-position-gauge-white-wema-uk-110923-424.jpg?v=1725290822","variant_ids":[29346458631]},"available":true,"name":"Trim Tab Position Gauge - White \/ White","public_title":"White \/ White","options":["White","White"],"price":6547,"weight":150,"compare_at_price":null,"inventory_quantity":10,"inventory_management":"shopify","inventory_policy":"continue","barcode":"29346458631","featured_media":{"alt":"Trim Position Gauge - White","id":40627855458598,"position":4,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/wema.co.uk\/cdn\/shop\/files\/trim-tab-position-gauge-white-wema-uk-110923-424.jpg?v=1725290822"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

{"id":29346458503,"title":"Black \/ Stainless","option1":"Black","option2":"Stainless","option3":null,"sku":"110925","requires_shipping":true,"taxable":true,"featured_image":{"id":48324837048614,"product_id":8875831559,"position":3,"created_at":"2024-09-02T16:26:57+01:00","updated_at":"2024-09-02T16:26:57+01:00","alt":"Trim Position Gauge - Black \/ Stainless","width":2048,"height":2048,"src":"\/\/wema.co.uk\/cdn\/shop\/files\/trim-tab-position-gauge-black-stainless-wema-uk-110925-222.jpg?v=1725290817","variant_ids":[29346458503]},"available":true,"name":"Trim Tab Position Gauge - Black \/ Stainless","public_title":"Black \/ Stainless","options":["Black","Stainless"],"price":7179,"weight":150,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"continue","barcode":"29346458503","featured_media":{"alt":"Trim Position Gauge - Black \/ Stainless","id":40627854901542,"position":3,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/wema.co.uk\/cdn\/shop\/files\/trim-tab-position-gauge-black-stainless-wema-uk-110925-222.jpg?v=1725290817"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

Description

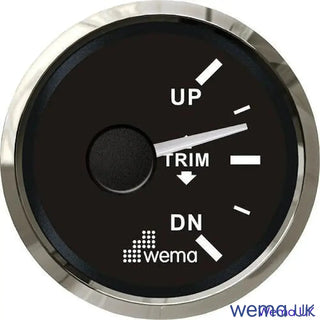

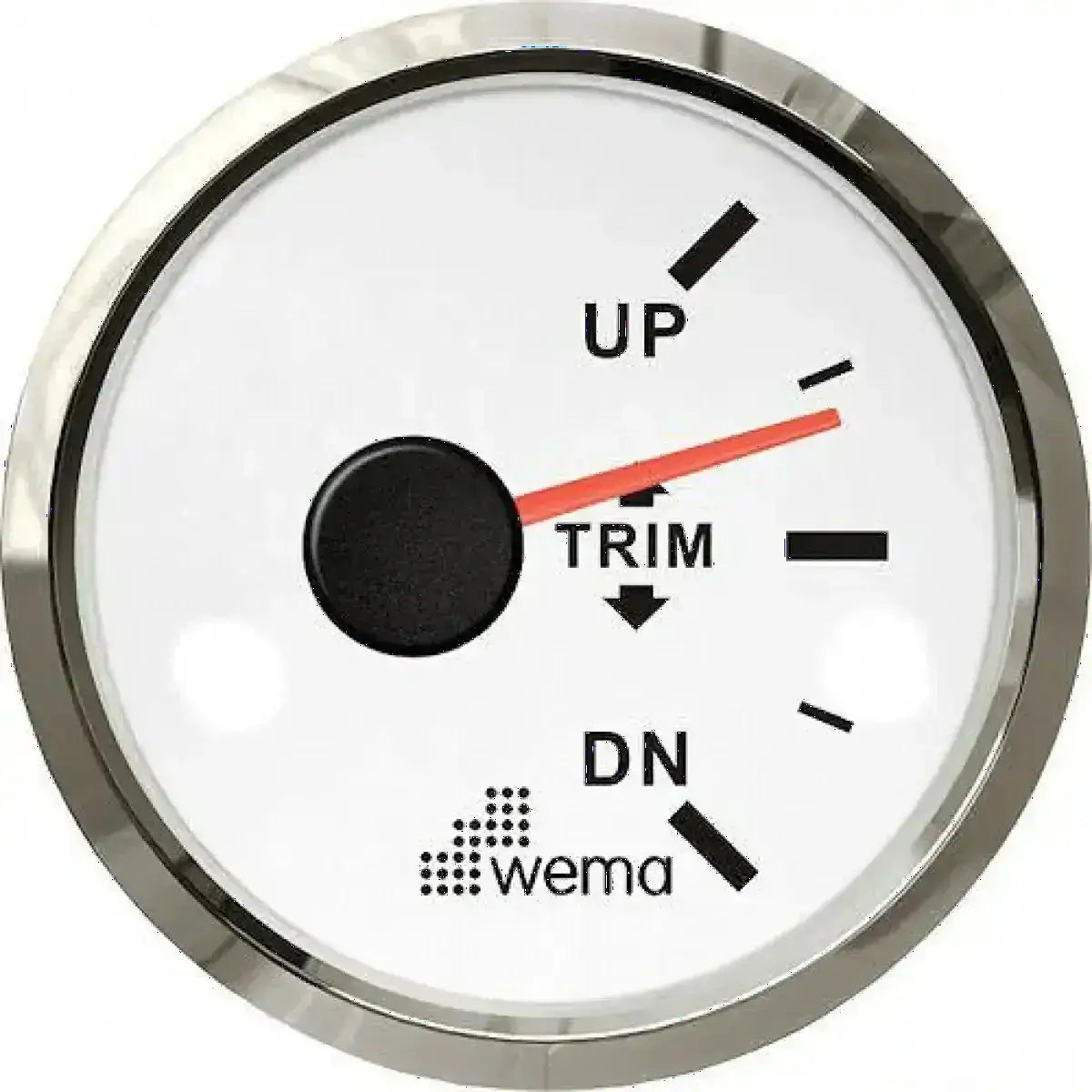

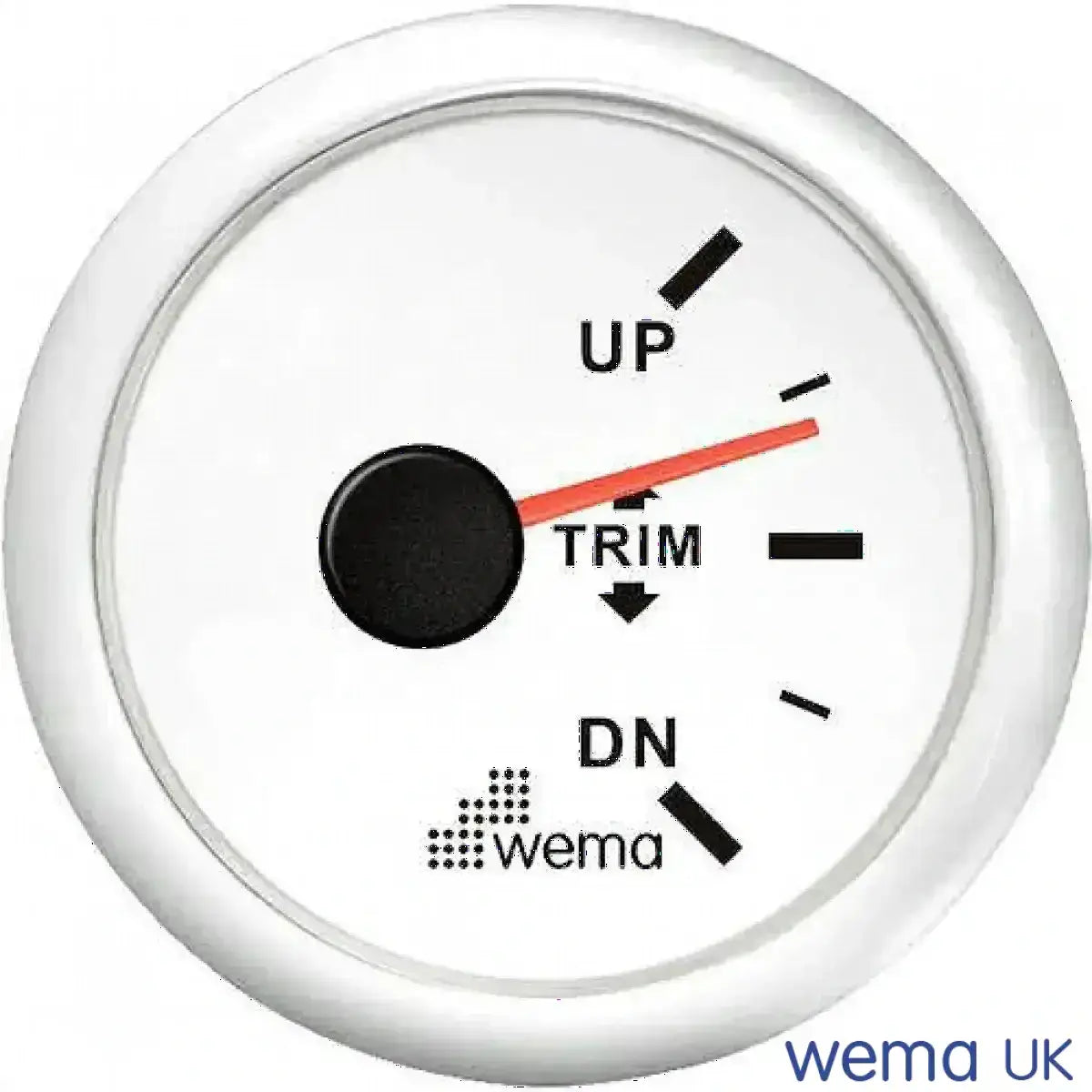

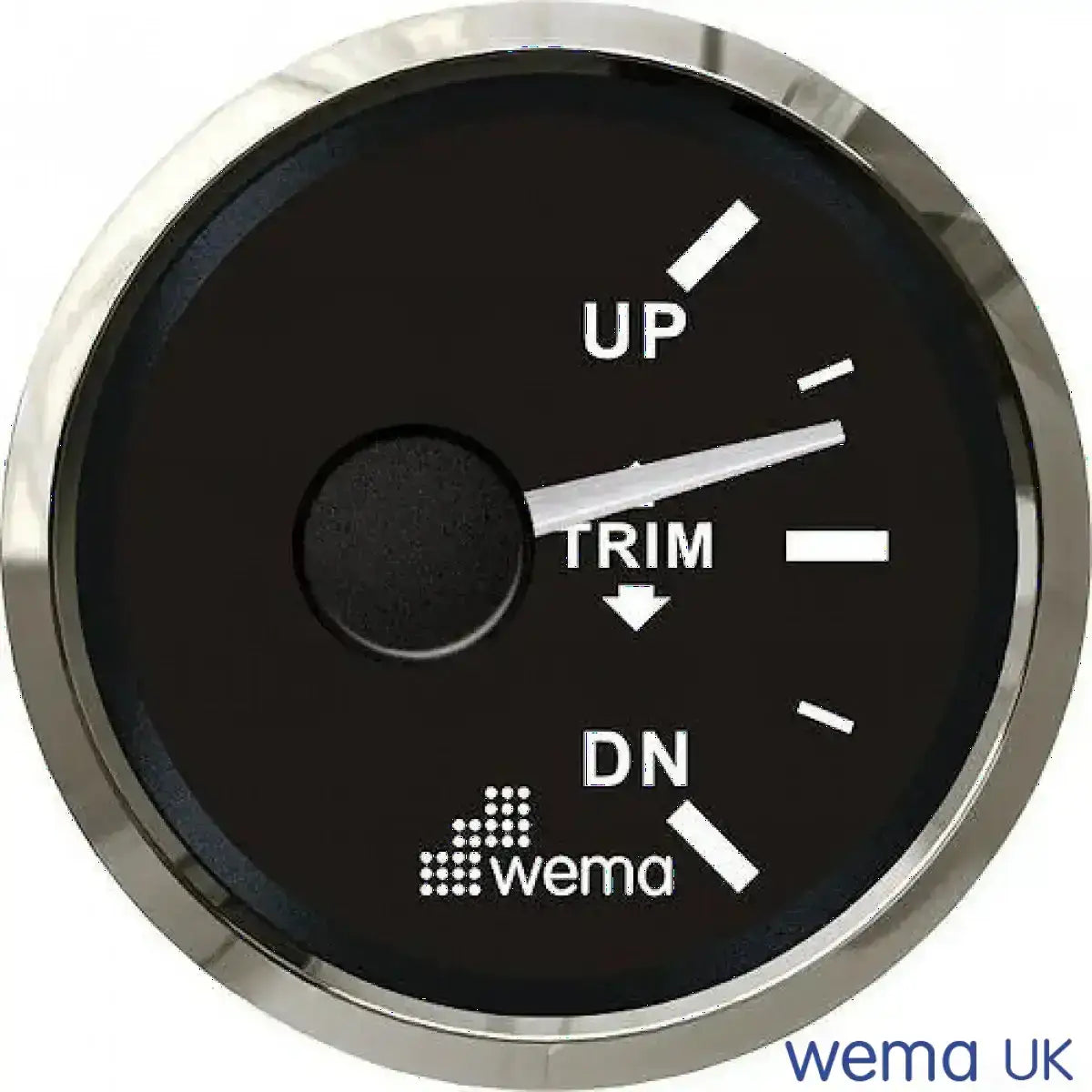

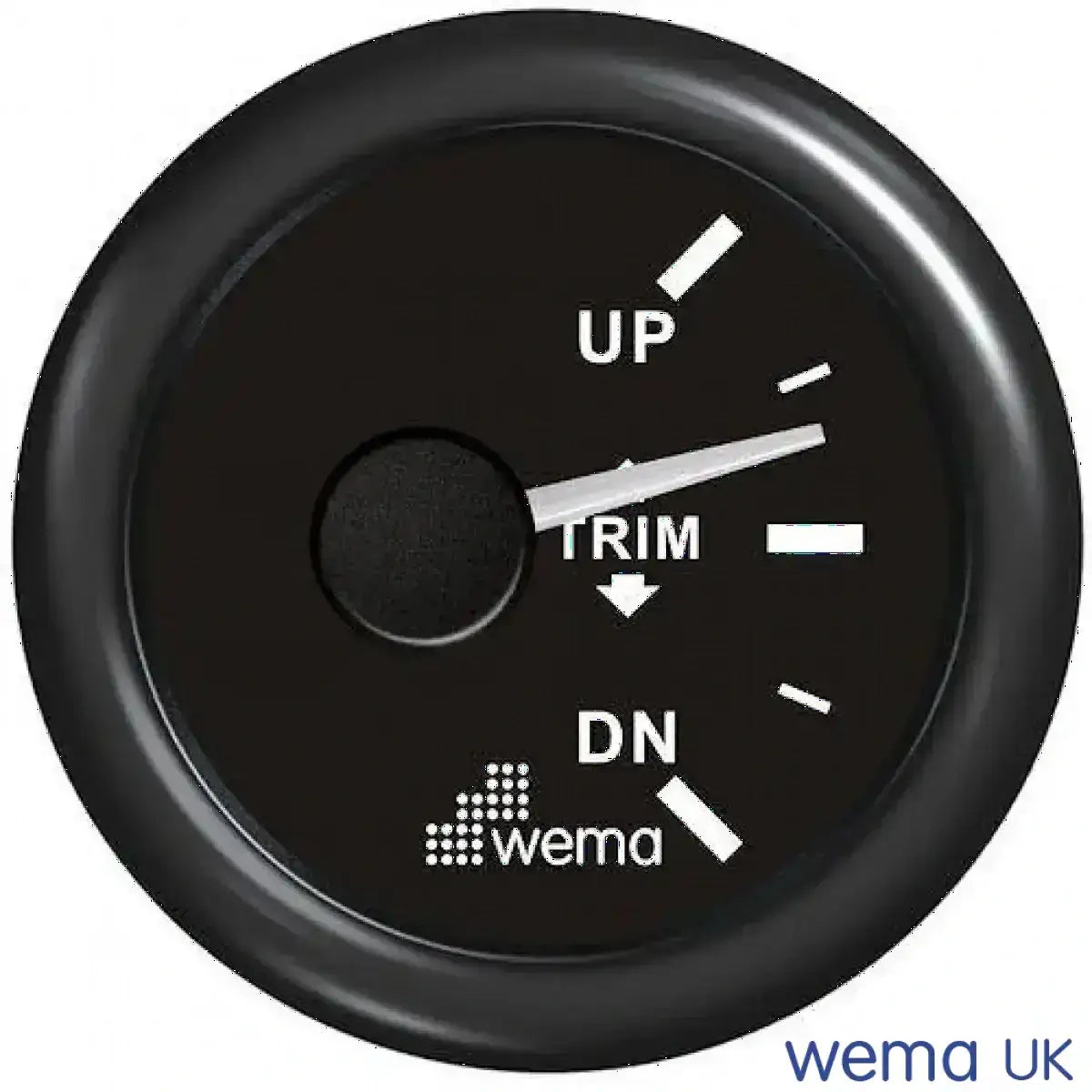

The Wema trim tab position gauge shows the vertical position of the trim tabs.
Works with all compatible sensors with resistance range 180-10 ohms.

Available in all standard face and bezel colours to ensure continuity with all other gauges.

Trim Position Gauge Specifications

Trim position
52mm diameter
12v / 24v
Marine grade - IP67 waterproof
180-10 ohms
Backlight - Red or Yellow
Choice of face & bezel colours

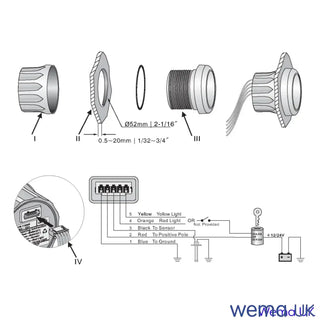

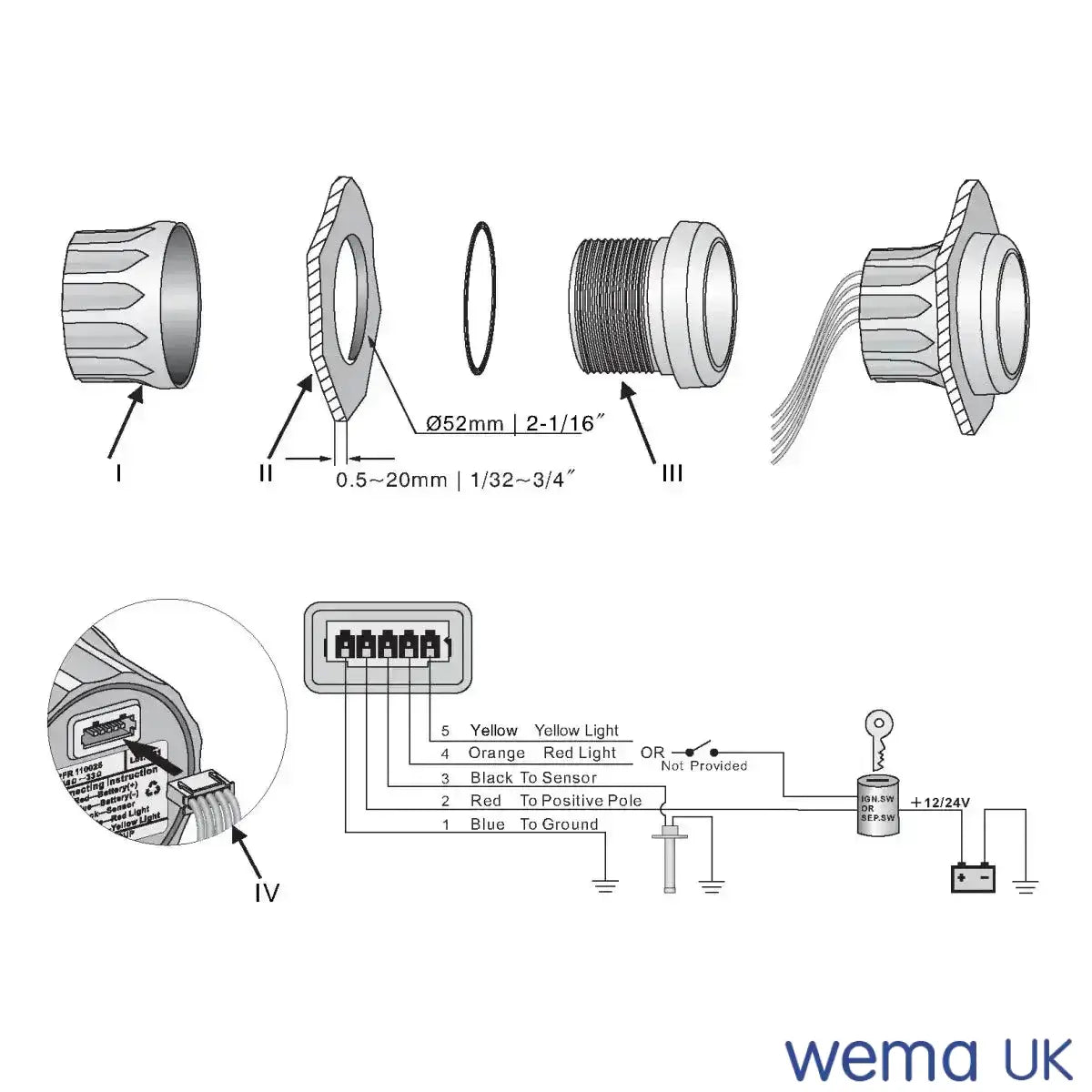

Yellow - yellow̴ light
Orange - red light
Black - to sensor
Red - to positive (battery +)
Blue - to ground (battery -)

1. Cut a 52mm (2 1/16") diameter hole in the panel.
You will need a minimum clearance of 55mm (2 3/16") behind the panel to fit the gauge.

2. Remove fastening ring and insert gauge through panel from the front, fit and tighten fastening ring from the rear.

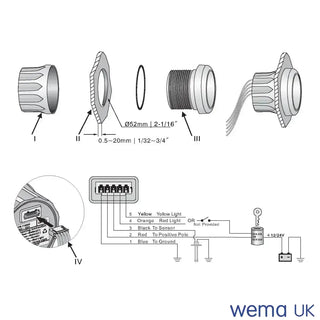

3. Connect wires according to wiring diagram.
Select either Orange or Yellow wires for backlighting. Wire colour corresponds with backlight colour.

* Note the use of a voltage regulator or dropping resistors for a 24V circuit.

4. Insert wire harness into port at the back of the gauge.
