Heavy Duty Rudder Indicator Gauge

Regular price£100.10
/
Shipping calculated at checkout.
  • Wema Guaranteed
  • Worldwide shipping
  • In stock, ready to ship

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Description

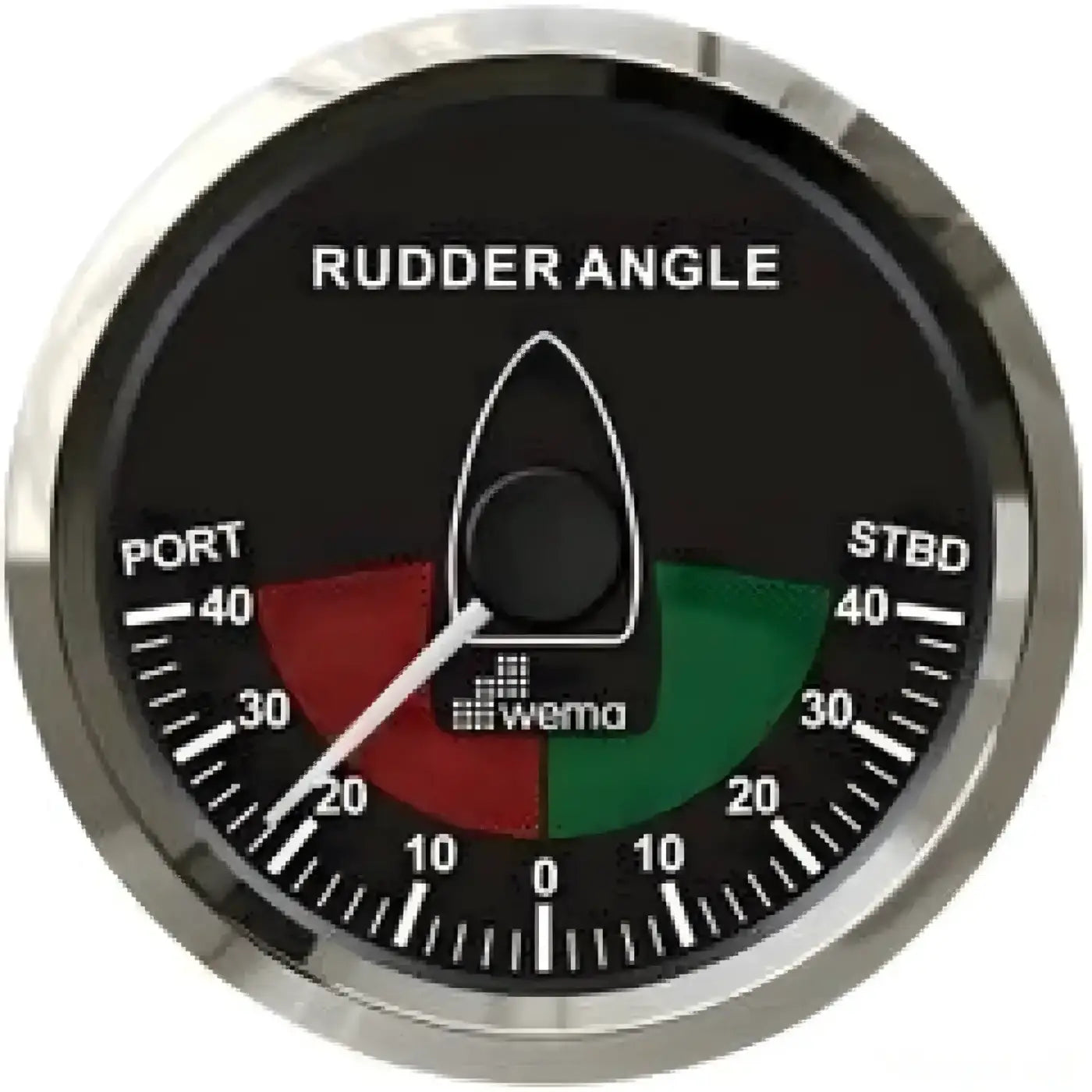

Analogue rudder position gauge for monitoring 40º of movement of the rudder in both directions from 0º.  Important for navigating tight and crowded waterways.

The sensor (150313) is sold separately.

Model: Black Silverline gauge with stainless steel bezel, acid resistant.




Heavy Duty Rudder Indicator Gauge Specifications:

• Working range: 0-5000 ohm
• Red or yellow backlight
• Operating temperature -25 to +70°C
• Waterproof, IP 56
• Resistant to ozone, UV and saltwater
• Fully corrosion protected
• Power supply: 12/24 V
• Power consumption: 0-130 mA
• Drill hole: 85 mm
• Outer dimension: 97 mm
• Depth: 60 mm
