The NMEA2000 Setup Tool is an essential component for configuring NMEA2000 converters, particularly in complex marine electronic systems where multiple sensors and instruments are integrated into a single NMEA2000 network. This tool plays a crucial role in ensuring seamless communication and accurate data transmission across various onboard devices.

When utilising the NMEA2000 Setup Tool, users can define the instance and type of each instrument connected to the network. This configuration process assigns the correct protocol number to each device, enabling the NMEA2000 network to accurately identify and interpret data from multiple sources.


For example, on a vessel equipped with two fuel tanks and one water tank, you would configure the system as follows:

FUEL TANK #1
Sender #1 - Type: Fuel, Instance: 0
Fuel gauge #1 - Instance 0


FUEL TANK #2
Sender #2 - Type: Fuel, Instance: 1
Fuel gauge #2 - Instance 1


WATER TANK
Sender #3 - Type: Water, Instance: 0
Water gauge #1 - Instance 0

NOTE:

By default, senders are configured for Fuel tank / instance 0. If you require a different calibration for specific tanks or instances, it's important to specify the tank and instance number when placing your order or purchase a Setup Tool. This ensures that your NMEA2000 converters are properly calibrated to match your vessel's unique configuration.

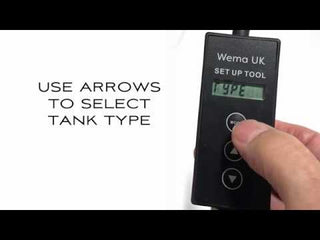

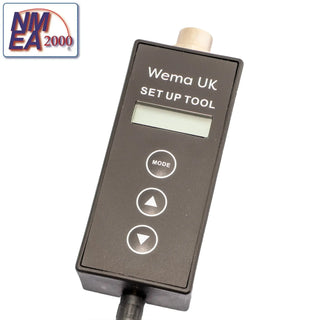

Setup Tool Instruction Video (picture #2)

To assist users in properly configuring their NMEA2000 network, an instructional video is available. This video guide provides step-by-step instructions on how to use the NMEA2000 Setup Tool effectively.  Feel free to pause the video as you follow along.
