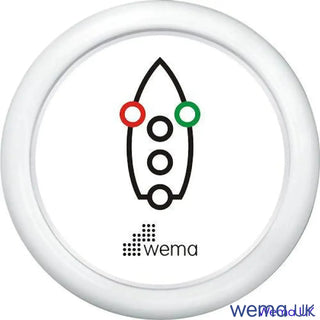

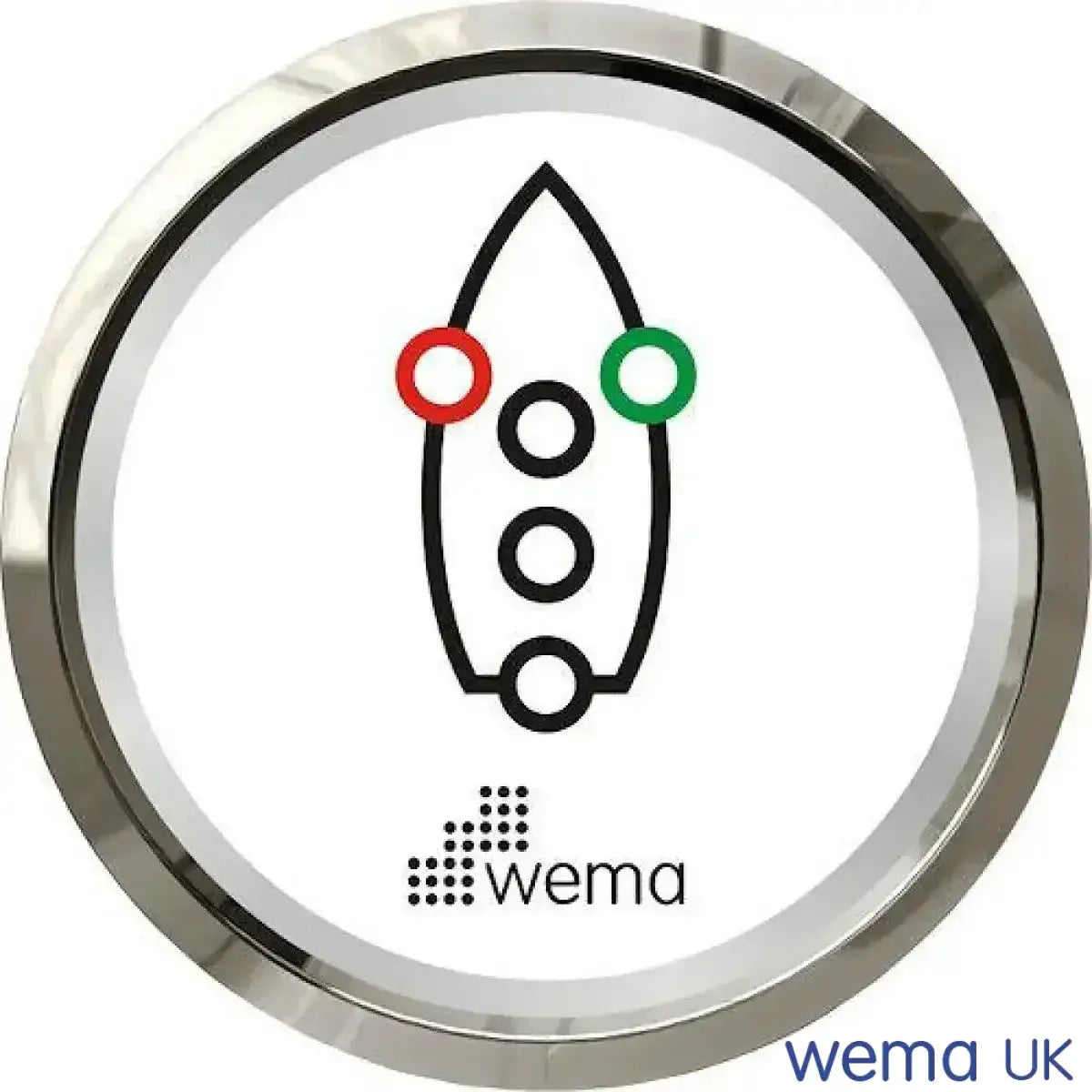

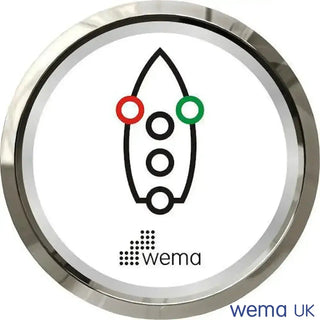

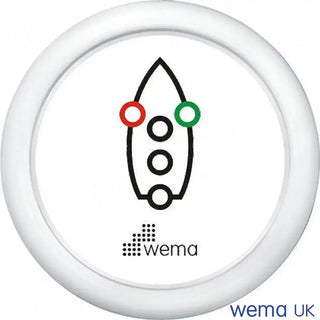

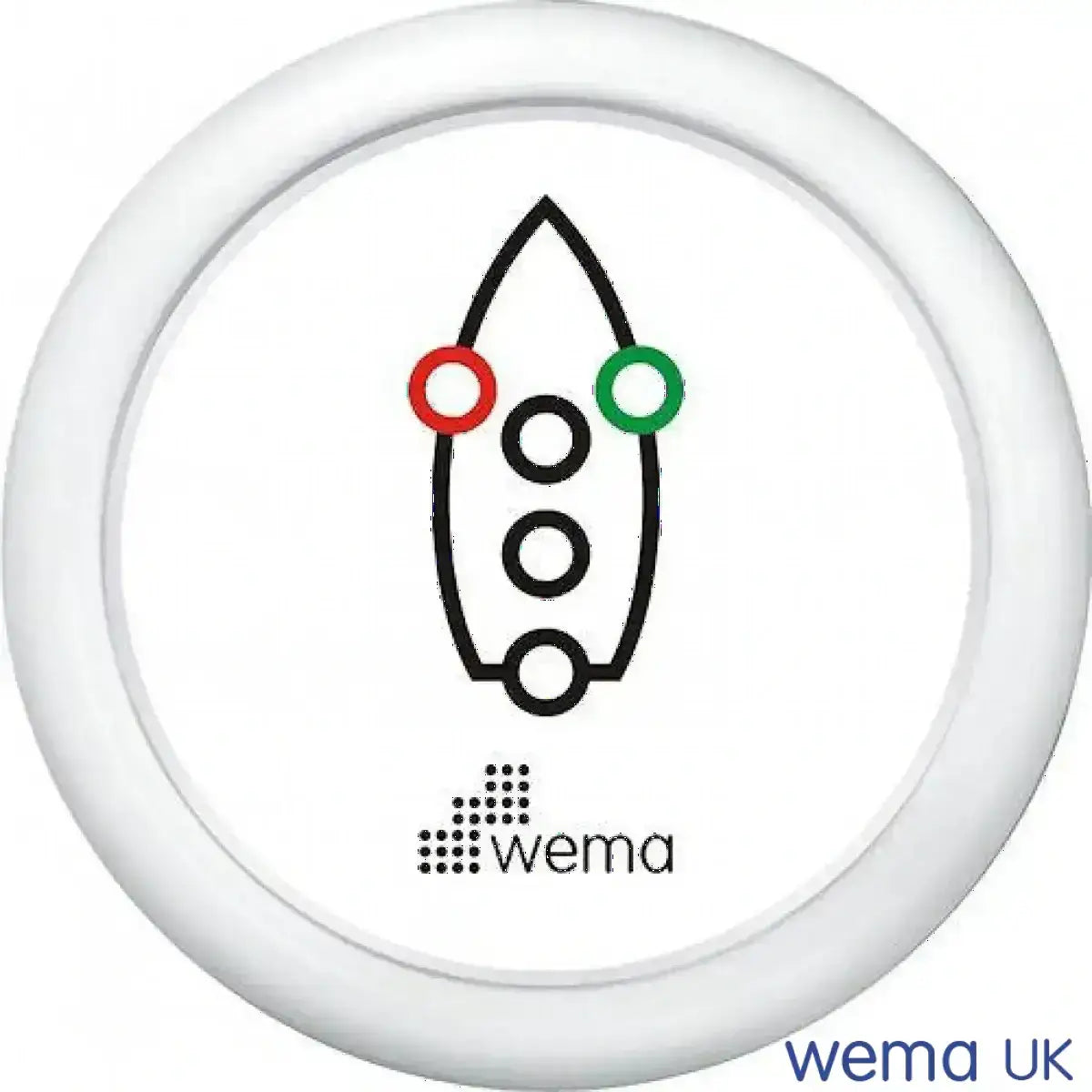

Navigation Light Gauge
- Unit price
- / per
Suitable for use with traditional incandescent or modern LED navigation lights
LED gauge technology for clear, bright visibility
52mm diameter, fitting standard gauge openings
Comprehensive kit includes paired relay box
Dual voltage compatibility: 12v/24v
Marine grade construction with IP67 waterproof rating for durability in harsh marine environments
Customizable backlight options: Red or Yellow for optimal nighttime visibility

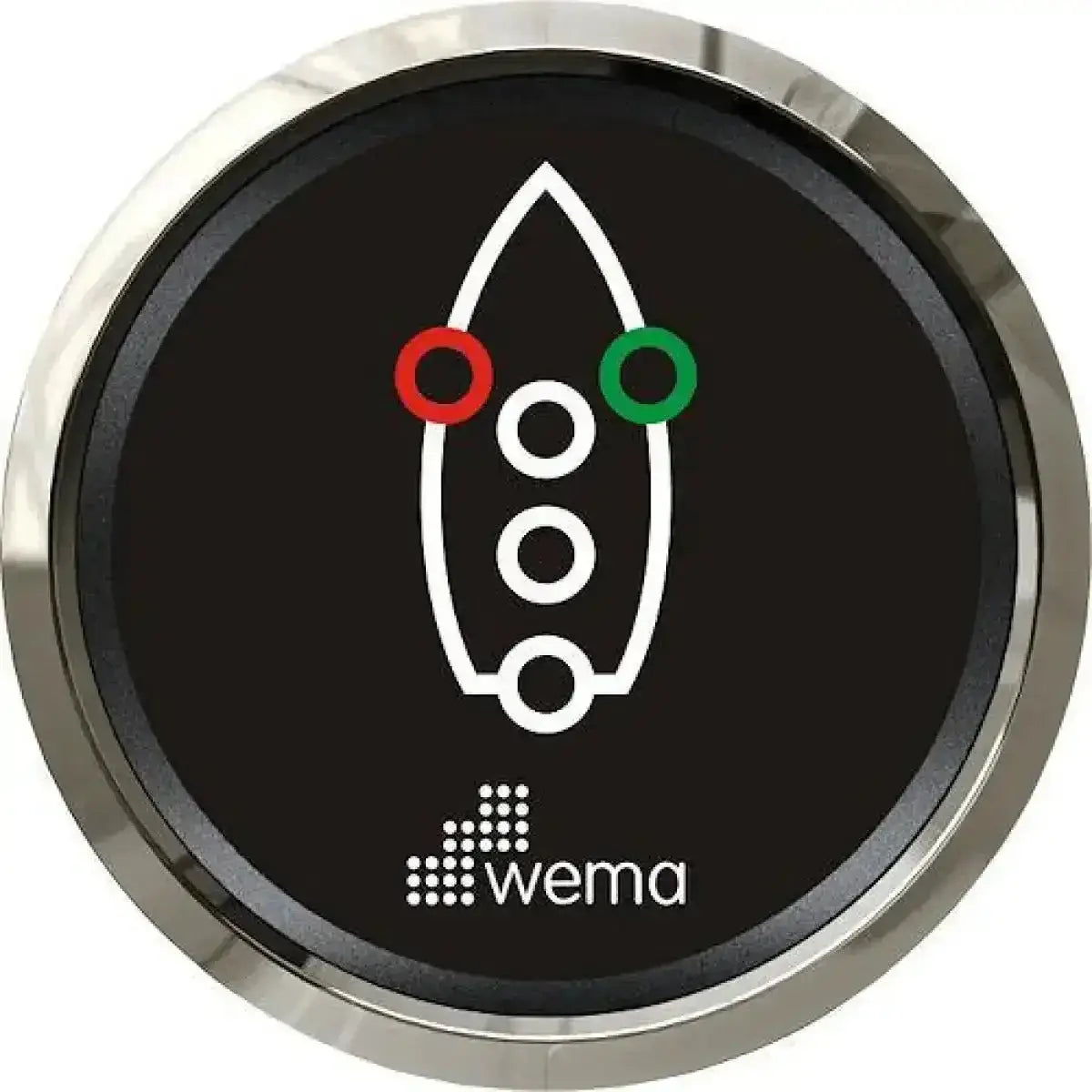

Variety of face & bezel colours to match existing instrumentation
The Wema LED navigation light gauge is an essential tool for boat operators, allowing them to monitor the status of their vessel's navigation lights from the convenience of the helm. This innovative device enhances safety and compliance with maritime regulations by providing real-time feedback on light functionality.
This paired set of gauge and relay is suitable for use with traditional incandescent or modern LED navigation lights.
The key feature of this LED navigation light gauge is to instantly alert the user to any issues with the navigation lights. If a bulb burns out or a cable connection becomes loose or broken, the corresponding LED on the gauge will immediately turn off. This visual indication allows the operator to quickly identify which specific light needs attention, saving time and ensuring all lights remain operational during nighttime navigation or low visibility conditions.
Designed with versatility in mind, the Wema LED navigation light gauge is available in a range of standard face and bezel colors. This allows for seamless integration with other onboard instrumentation, maintaining a cohesive and professional appearance at the helm station. The ability to match the gauge's aesthetics to existing equipment ensures that it complements the overall design of the vessel's control panel.
The Wema LED navigation light gauge is engineered to withstand the demanding conditions of marine use. Its IP67 waterproof rating ensures protection against water ingress and corrosion, making it suitable for both interior and exterior mounting locations. The gauge's robust construction and reliable performance make it an ideal choice for recreational boaters, commercial vessels, and maritime professionals alike.
Installation of the Wema LED navigation light gauge is straightforward, thanks to the included relay box. This comprehensive kit provides all necessary components for a hassle-free setup, allowing for quick integration into existing electrical systems.
The backlight options of red or yellow allow for customization based on user preference and specific navigational needs. Red backlighting is often preferred for preserving night vision, while yellow offers high contrast and visibility in various lighting conditions. This feature enhances the gauge's usability during nighttime operations or in low-light situations. The backlight can with switched to change colour or dimmed with a variable resistor.
By incorporating the Wema LED navigation light gauge into their vessel's instrumentation, operators can ensure compliance with maritime safety regulations and maintain a constant awareness of their navigation light status. This proactive approach to light monitoring can prevent potential hazards and contribute to overall maritime safety.
Yellow - yellow̴ light
Orange - red light
Black - to sensor
Red - to positive (battery +)
Blue - to ground (battery -)
1. Cut a 52mm (2 1/16") diameter hole in the panel.
You will need a minimum clearance of 55mm (2 3/16") behind the panel to fit the gauge.
2. Remove fastening ring and insert gauge through panel from the front, fit and tighten fastening ring from the rear.

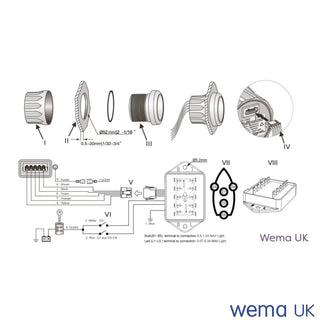

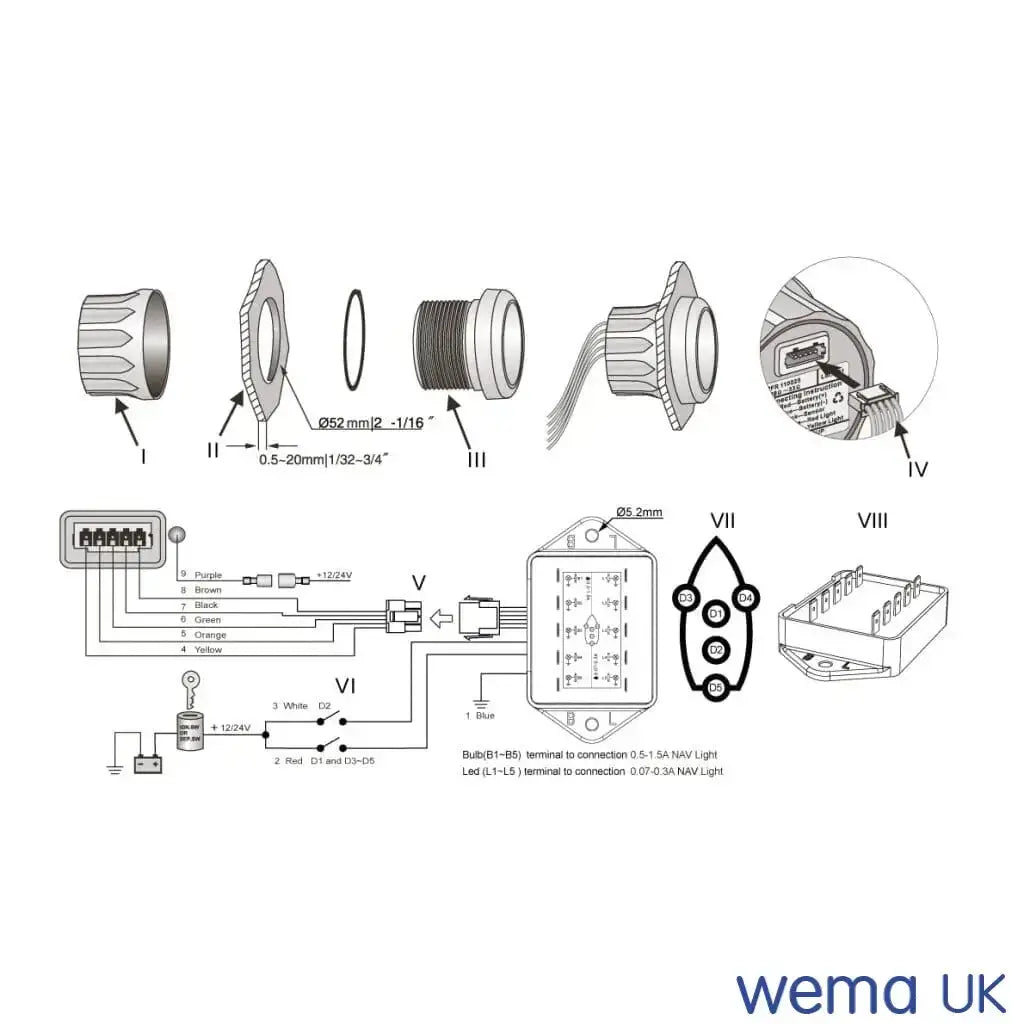

3. Connect wires according to wiring diagram.
Select either Orange or Yellow wires for backlighting. Wire colour corresponds with backlight colour.
4. For optional navigation light and anchoring light, white wire and red wire can connect to the switch separately. As the white wire connects to positive pole, the red wire also connects to positive pole; when only red wire power on, white wire disconnect.
5. If the navigation light is an incandescent bulb, connect one end of bulb to B end, and the other end to the negative pole;
For an LED light, connect the positive pole of LED light to the L end, and the other end to the negative pole;
6. The LED lights D1 to D5 in the gauge will be activated when power is consumed through the navigation lights. A broken circuit, wire or bulbs will deactivate the respective LED in the gauge.
*Note: The input current for B terminal and L terminal must not exceed the scope defined on the label.
7. Insert wire harness into port at the back of the gauge.
