Leakage Alarm Sender

£24.92

Shipping calculated at checkout.

Material

Stainless Steel

ABS Plastic

Quantity

Wema Guaranteed

Worldwide shipping

In stock, ready to ship

[{"id":50655674260,"title":"Stainless Steel","option1":"Stainless Steel","option2":null,"option3":null,"sku":"151121","requires_shipping":true,"taxable":true,"featured_image":{"id":48324928274726,"product_id":11622335124,"position":1,"created_at":"2024-09-02T16:38:16+01:00","updated_at":"2024-09-02T16:38:16+01:00","alt":"Leakage Alarm Sender - Stainless Steel","width":2048,"height":2048,"src":"\/\/wema.co.uk\/cdn\/shop\/files\/leakage-alarm-sender-stainless-steel-wema-uk-151121-892.jpg?v=1725291496","variant_ids":[50655674260]},"available":true,"name":"Leakage Alarm Sender - Stainless Steel","public_title":"Stainless Steel","options":["Stainless Steel"],"price":2492,"weight":370,"compare_at_price":null,"inventory_quantity":-2,"inventory_management":"shopify","inventory_policy":"continue","barcode":"7025921511216","featured_media":{"alt":"Leakage Alarm Sender - Stainless Steel","id":40627913883942,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/wema.co.uk\/cdn\/shop\/files\/leakage-alarm-sender-stainless-steel-wema-uk-151121-892.jpg?v=1725291496"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":50655729812,"title":"ABS Plastic","option1":"ABS Plastic","option2":null,"option3":null,"sku":"151121-ABS","requires_shipping":true,"taxable":true,"featured_image":{"id":48324929093926,"product_id":11622335124,"position":2,"created_at":"2024-09-02T16:38:21+01:00","updated_at":"2024-09-02T16:38:21+01:00","alt":"Leakage Alarm Sender - ABS Plastic","width":2048,"height":2048,"src":"\/\/wema.co.uk\/cdn\/shop\/files\/leakage-alarm-sender-abs-plastic-wema-uk-151121-abs-307.jpg?v=1725291501","variant_ids":[50655729812]},"available":true,"name":"Leakage Alarm Sender - ABS Plastic","public_title":"ABS Plastic","options":["ABS Plastic"],"price":1950,"weight":250,"compare_at_price":null,"inventory_quantity":18,"inventory_management":"shopify","inventory_policy":"deny","barcode":"50655729812","featured_media":{"alt":"Leakage Alarm Sender - ABS Plastic","id":40627914277158,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/wema.co.uk\/cdn\/shop\/files\/leakage-alarm-sender-abs-plastic-wema-uk-151121-abs-307.jpg?v=1725291501"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Description

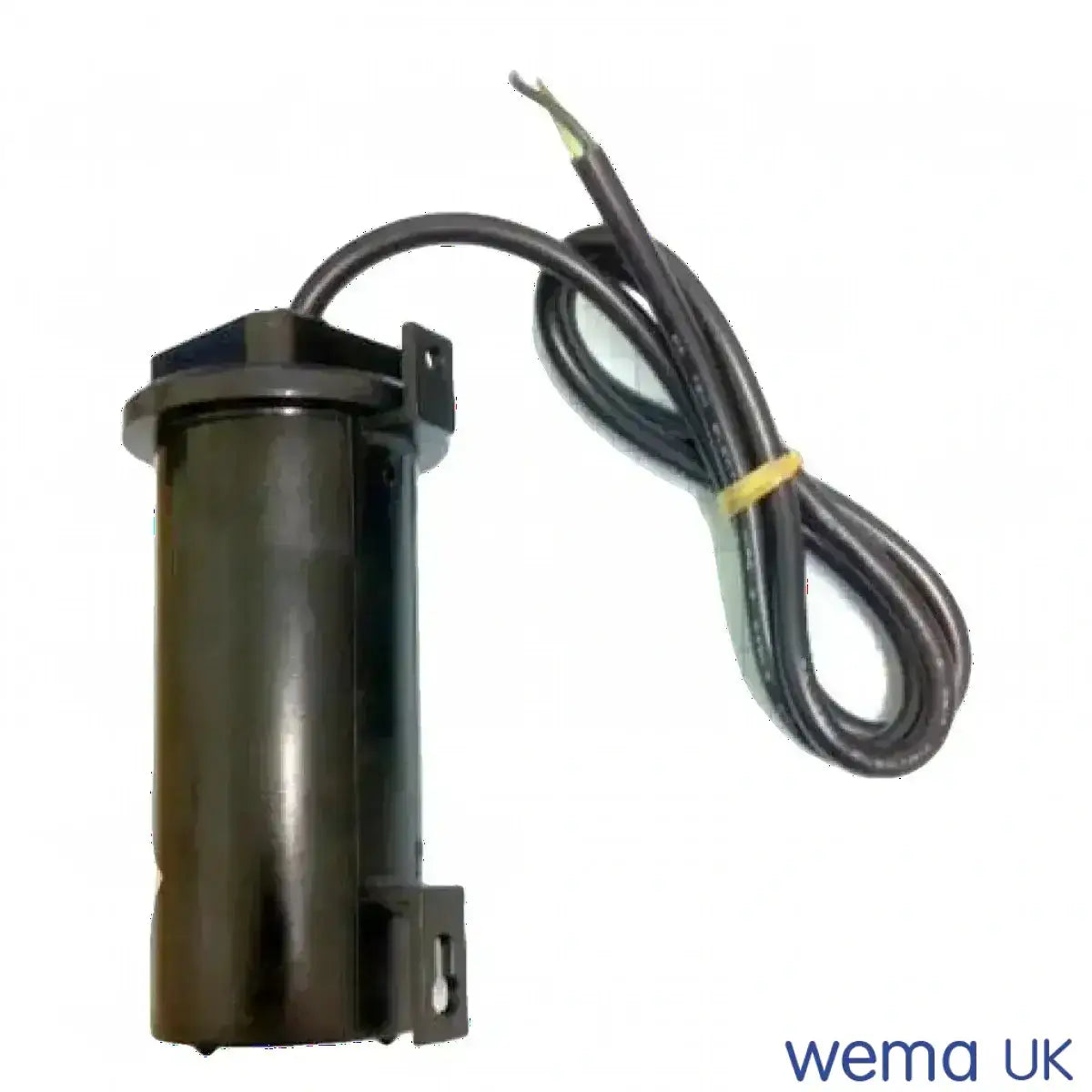

The leakage alarm sender is placed in the bilge, at a level where there is normally no water and connected to our Buzzer Alarm, the alarm will sound if water unexpectedly reaches the trigger point. It can also be connected to a signal lamp or relay.

A simple safety product for peace of mind.

Available in ABS plastic or Stainless Steel - both products operate the same.

*IMPORTANT*

Don't connect to power without a lamp or buzzer in the circuit as this will cause a short circuit and destroy the switch.

1. Mount the bracket (I) in suitable place, insert the sensor (II) and fasten by tightening the screw (III) .
2. Make electrical connections according to diagram (IV), You can connect to 12 or 24 Volt system. Max power is 300mA/3 W.
3. *IMPORTANT* Don't connect to power without a lamp or buzzer in the circuit as this will cause a short circuit and destroy the switch.
4. Normal position is as fig (V). Test the function regularly by turning the sensor upside down(VI), the float inside will move and activate the alarm.
5. The alarm level is at 80-85 mm from bottom of unit(VII).
