Holding Tank Level Gauge - Black / Stainless
Holding Tank Level Gauge - Black

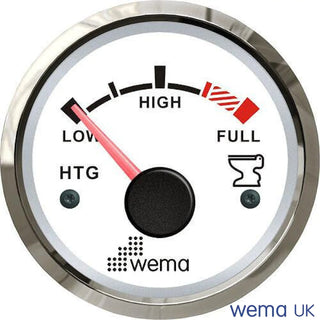

Holding Tank Level Gauge - White / Stainless

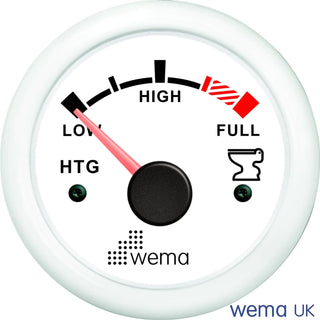

Holding Tank Level Gauge - White

110697

Holding Tank Level Gauge

Regular price£43.49
/
Shipping calculated at checkout.
Face colour
Bezel colour
  • Wema Guaranteed
  • Worldwide shipping
  • In stock, ready to ship

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Description

Analogue black water gauge for monitoring of holding tank level.

Works with Wema S3-H senders.  Also works with other senders with matching resistance range.

Available in American resistance (240-20ohms) specification.

Available in all standard face and bezel colours to ensure continuity with all other gauges.



 Holding Tank Level Gauge Specifications

  • Black water level

  • 52mm diameter gauge

  • 12v/24v

  • Marine grade - IP67 waterproof

  • 240-30 ohms

  • Backlight - Red or Yellow

  • Choice of face & bezel colours



Yellow - yellow̴ light
Orange - red light
Black - to sensor
Red - to positive (battery +)
Blue - to ground (battery -)

1. Cut a 52mm (2 1/16") diameter hole in the panel.
You will need a minimum clearance of 55mm (2 3/16") behind the panel to fit the gauge.
2. Remove fastening ring and insert gauge through panel from the front, fit and tighten fastening ring from the rear.

3. Connect wires according to wiring diagram.
Select either Orange or Yellow wires for backlighting. Wire colour corresponds with backlight colour.
* Note the use of dropping resistors for 24V circuit.

4. Insert wire harness into port at the back of the gauge.
