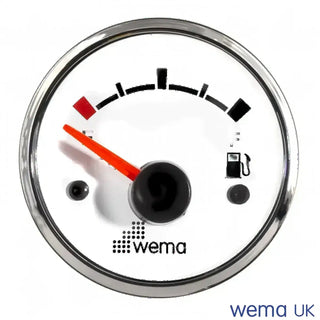

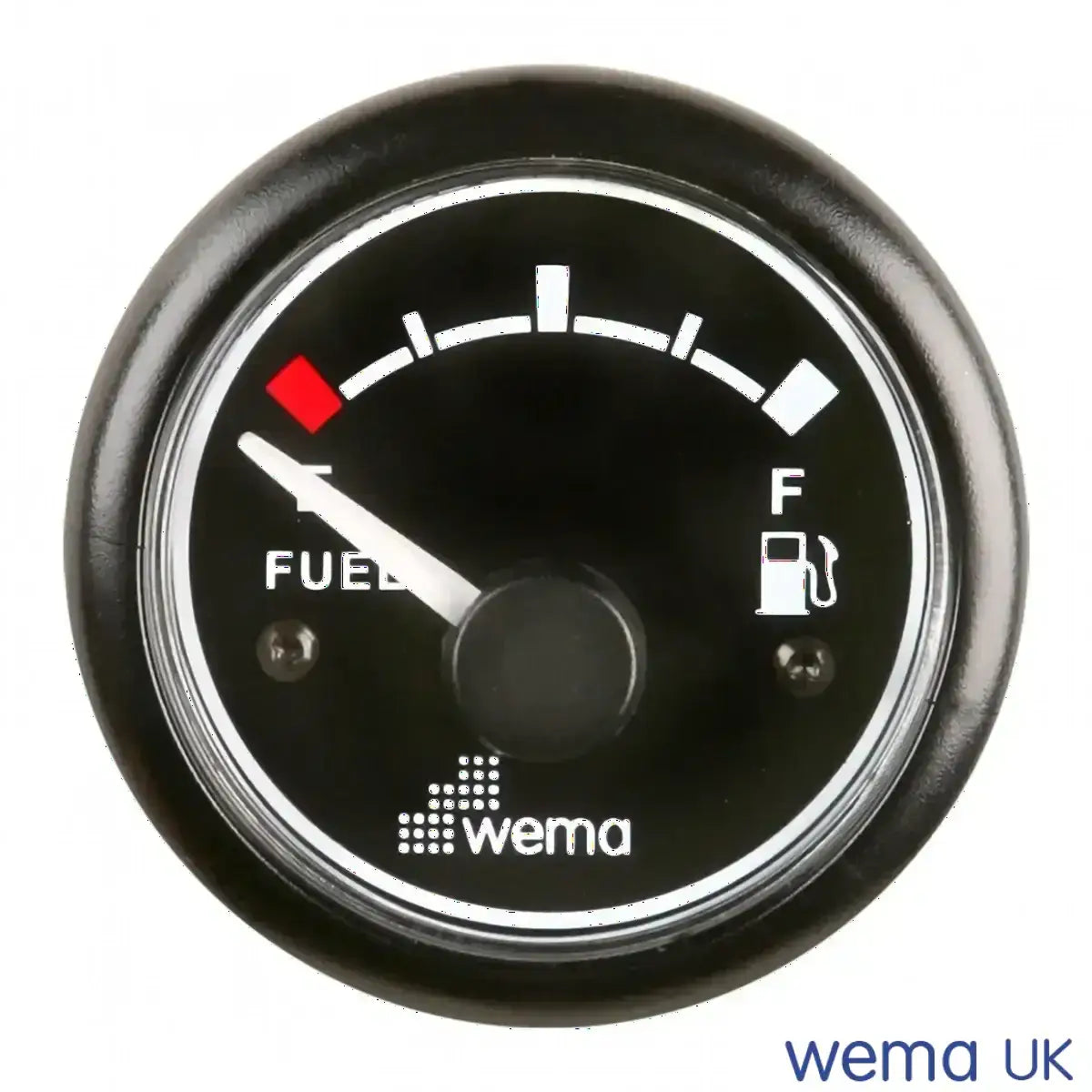

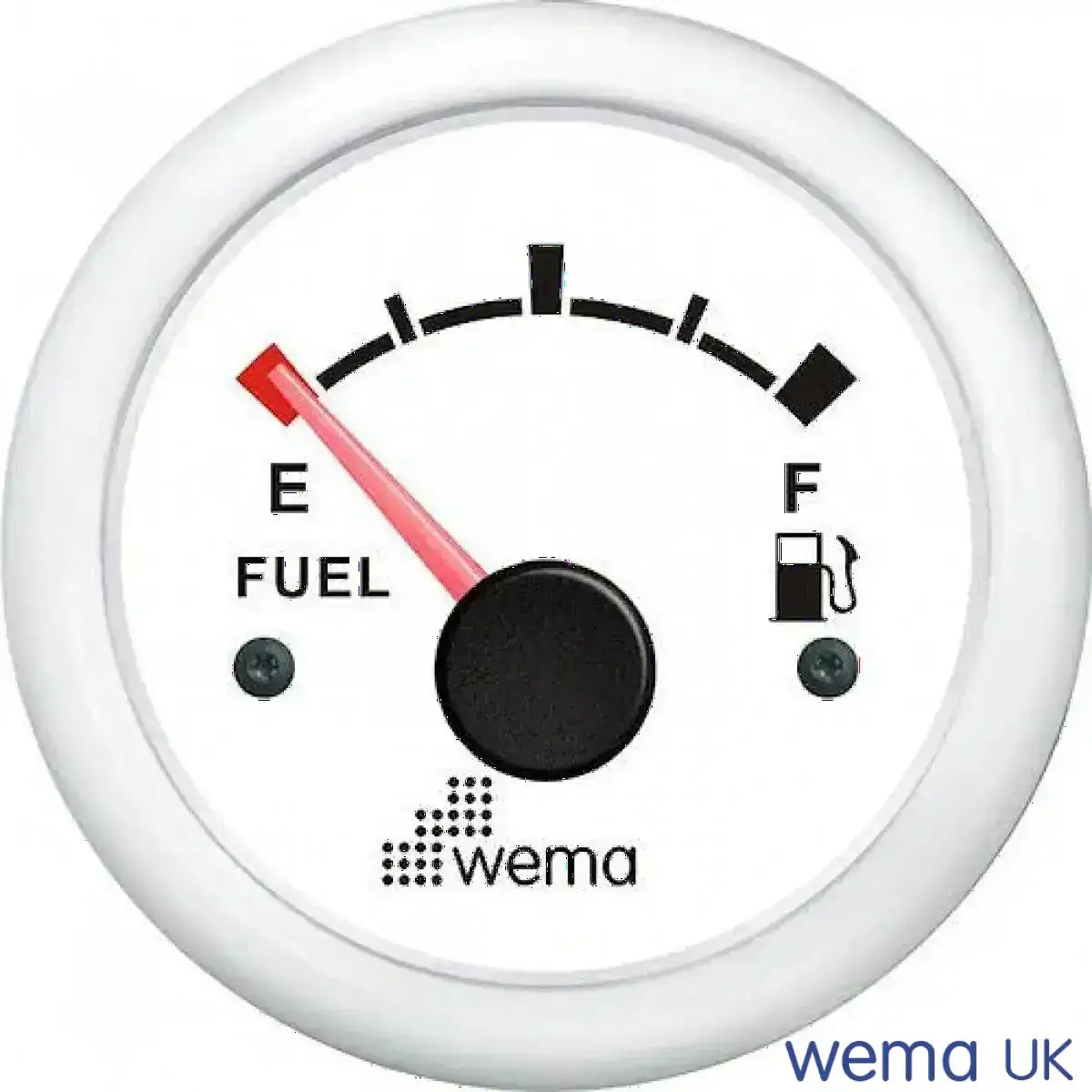

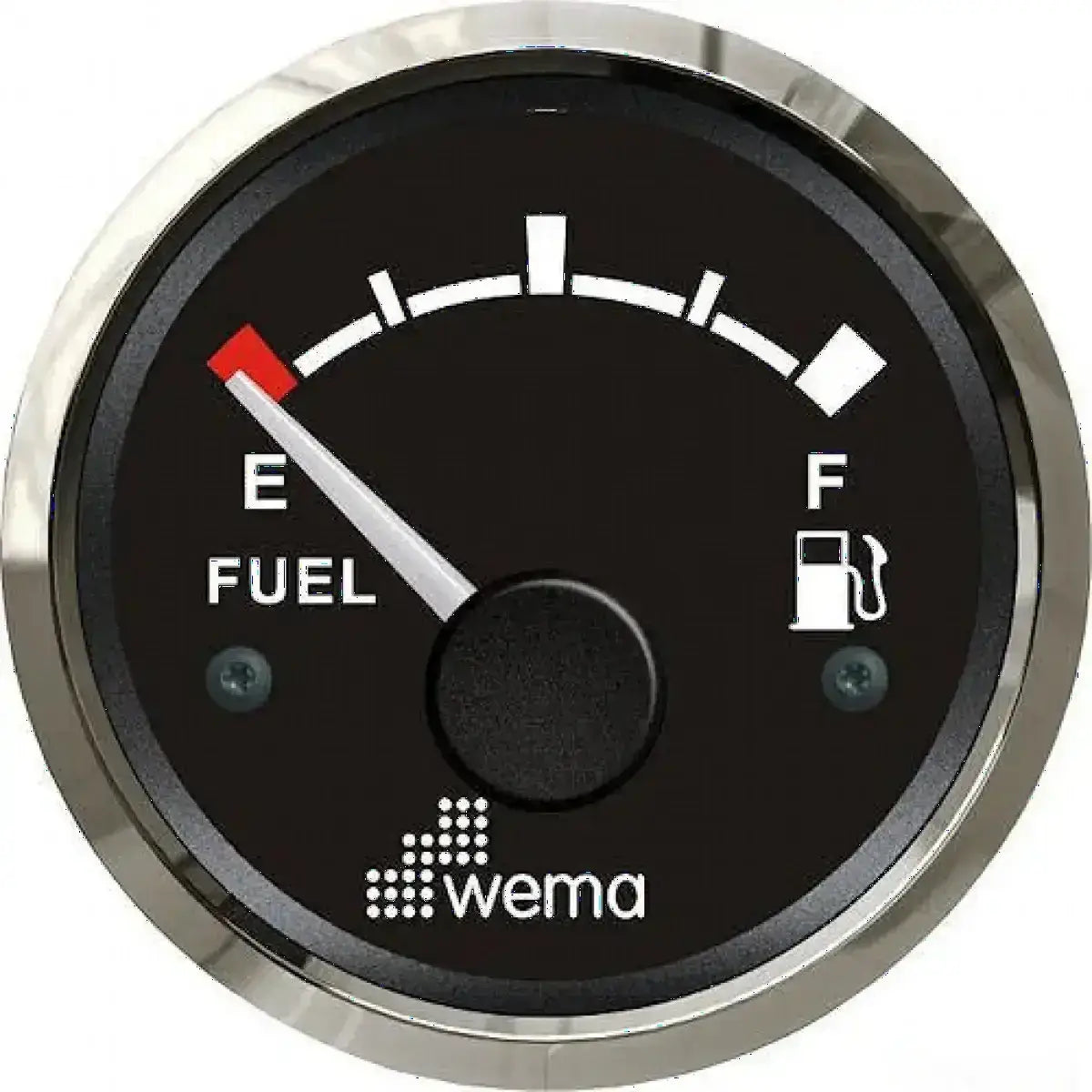

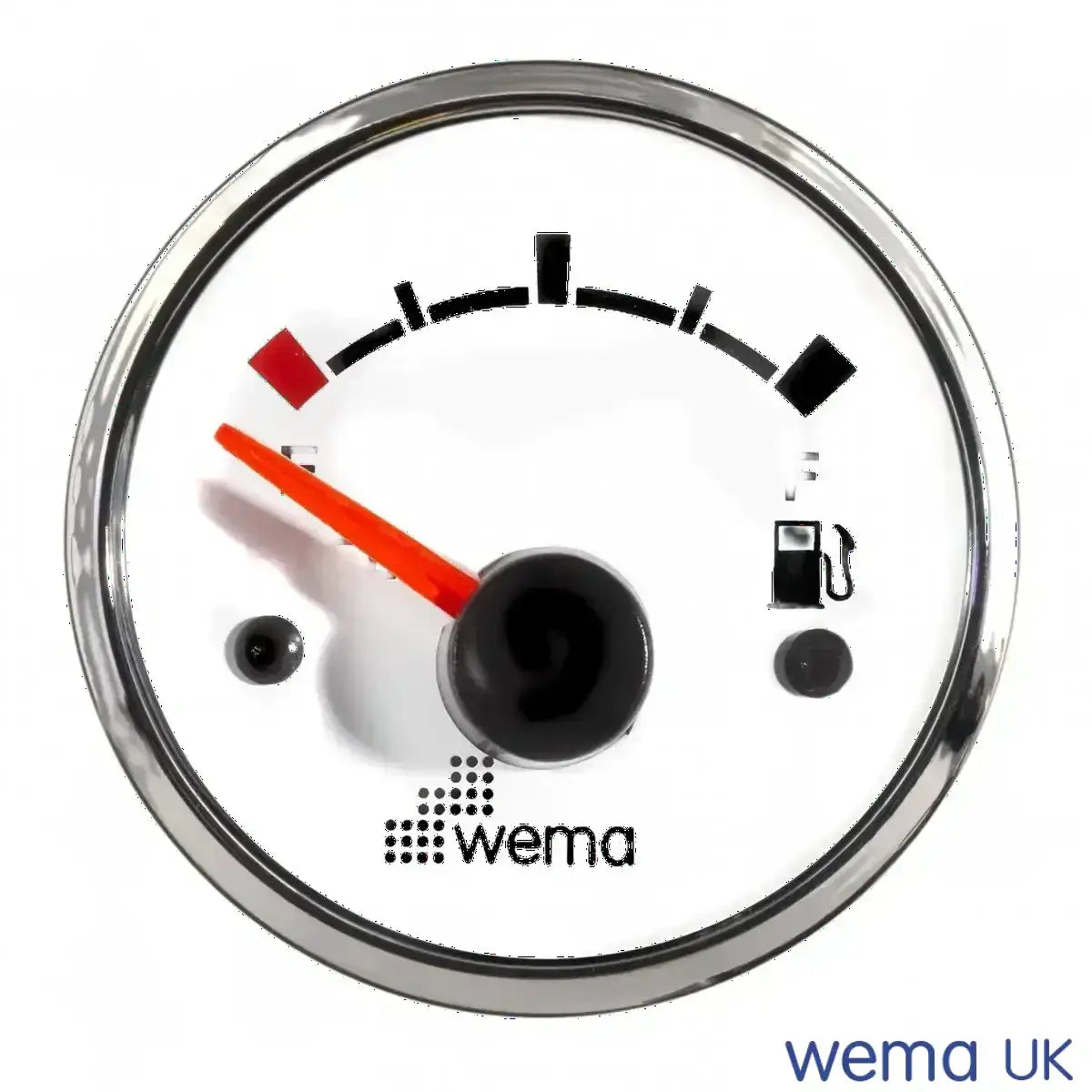

ANALOGUE FUEL GAUGE

Analogue fuel level gauge for monitoring of fuel tank level.

Works with either S3 or S5 senders. Available in European (0-190ohms) or US (240-20ohms) specification.

Available in all standard face and bezel colours to ensure continuity with all other gauges.

Fuel level
52mm diameter gauge
12v/24v
Marine grade - IP67 waterproof
0-190 ohms or 240-30 ohms
Backlight - Red or Amber
Choice of face & bezel colours

INSTALLATION̴

WIRING INSTRUCTIONS

Yellow - yellow̴ light
Orange - red light
Black - to sensor
Red - to positive (+)
Blue - to ground (-)

INSTALLATION INSTRUCTIONS

1. Cut a 52mm (2 1/16") diameter hole in the panel.
You will need a minimum clearance of 55mm (2 3/16") behind the panel to fit the gauge.

2. Remove fastening ring and insert gauge through panel from the front, fit and tighten fastening ring from the rear.

3. Connect wires according to wiring diagram.

Select either Orange or Yellow wires for backlighting. Wire colour corresponds with backlight colour.

* Note the use of dropping resistors for 24V circuit.

4. Insert wire harness into port at the back of the gauge.
