FLB Tank Inspection Hatch
FLB Tank Inspection Hatch
FLB Tank Inspection Hatch

163110

FLB Tank Inspection Hatch

Regular price£18.94
/
Shipping calculated at checkout.
  • Wema Guaranteed
  • Worldwide shipping
  • In stock, ready to ship

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Description

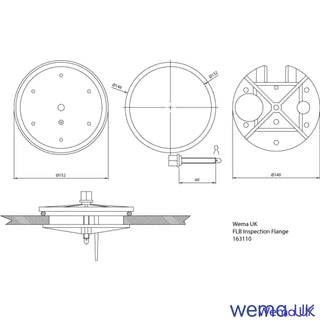

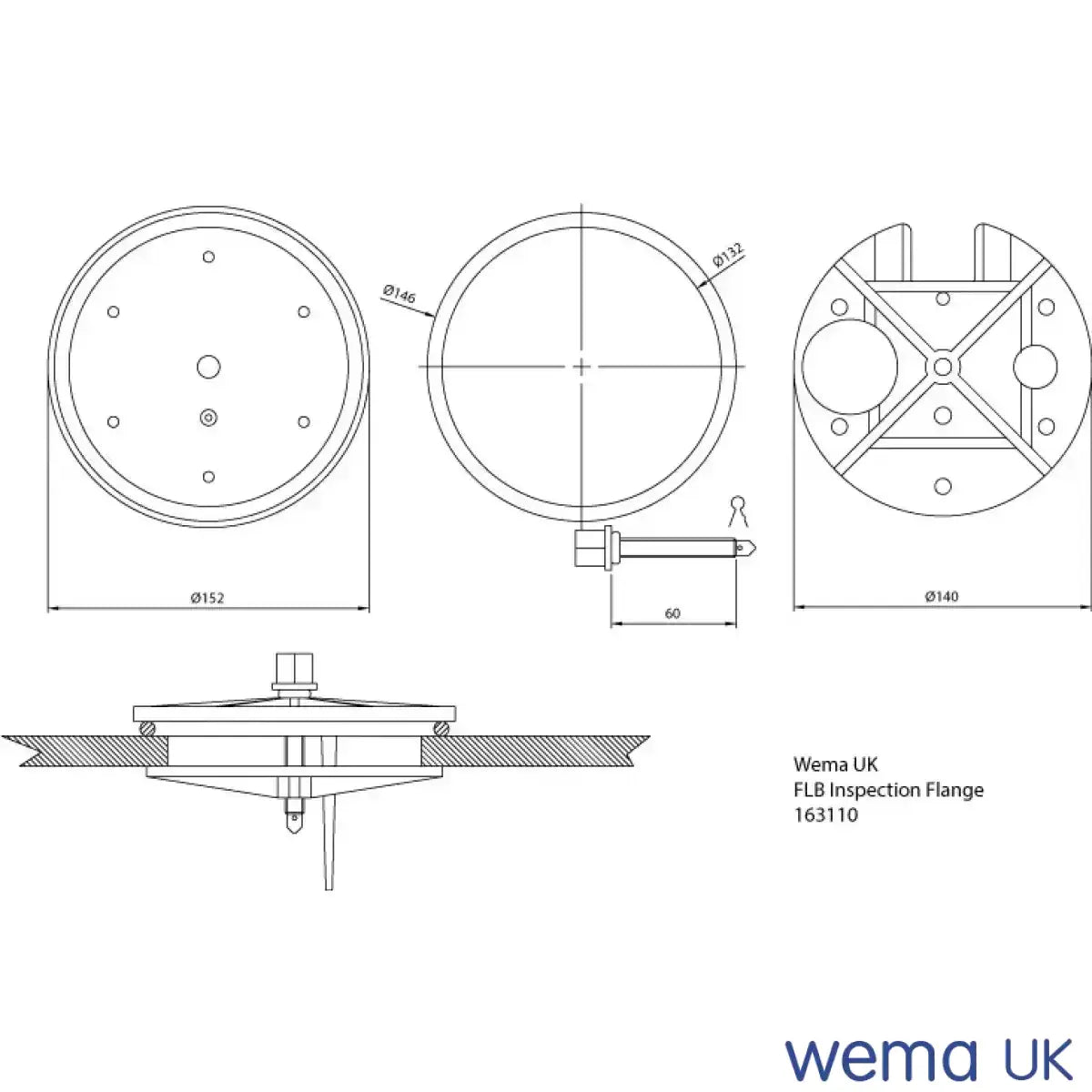

Nylon FLB Tank Inspection Hatch is fitted to the topside of the tank.

Hatch is secured by tightening central stainless steel bolt and can be removed to allow access to the tank.

Also available is the FLB-1 with 1 ¼" BSP female thread for fitting S3 type level sender.

Specifications

  • Simple and economical Inspection hatch
  • 152mm diameter
  • Requires 115mm ø hole in tank


    • Cut a 115mm hole in the tank.

      Loosely screw together the two plates with the stainless split pin in place.

      Lightly coat the O-ring with dishwasher liquid and put between the two plates.

      Rotate bottom plate through hole in tank and tighten central screw to give seal with the O-ring on the tank top surface.

      The choice of shipping options is calculated at the checkout.

      The price and available shipping options will depend on your location as well as the size and weight of your order.

      If you choose 'free delivery' or some Royal Mail services, the order may not be trackable for the duration of the journey and only show tracking events when the order is shipped and when it is delivered.

      We aim to dispatch all morning (GMT) orders the same day and all orders received afternoon or at weekends the following business day.

      Once your order has shipped you will be notified by email.

      To supply a replacement fuel or water sender we just need to know:

      • What type of sender do you have?

      • What resistance is it?

      • How long is it?

      • How many wires does it have?

      • What type of tank is it being fitted into?

      • What is the Wema product code?

      If your sender has information stamped on the head then we can identify your sender from the product code:

      [Please note: the code 001300 refers to the S3 head and the code 001306 / 001305 refers to the S5 sender head]

      Identifying a Wema sender

      Do you have an S3 or S5 sender?

      The S3 sender has a screw in head with a 1.25" BSP thread like this:

      [NOTE: A 1.25" BSP (British Standard Pipe) thread will actually measure larger than 1.25 inches when measured with a tape measure. This is because a BSP measurement refers to the internal bore of a pipe (for accurate flow rate) and not the outside of the thread.]

      Wema S3 sender head

      The S5 sender has a bolt down head with 5 holes like this:

      Wema S5 sender head

      [NOTE: The 5-hole drill pattern in the top of an S5 sender head is a standard SAE-5-hole pattern.]

      If you have a sender that is not an S3 or S5 then please click here

      What resistance is your current sender and gauge?

      The sender and gauge must have the same resistance values or the gauge will read incorrectly.

      You can either test the gauge or the sender to find this out.

      To test the sender:
      • Disconnect the two wires on top of the sender.

      • Remove the sender from the tank.

      • Connect the wires on the sender to a multimeter.

      • Set the multimeter to resistance [Ω ohms]

        Multimeter - Wema UK

      • Move the float to the top of the sender and take a reading on the multimeter:

        • At the top of the sender (full) the resistance should be:

          • European specification - 190 ohms

          • American specification - 30 ohms

      • Move the float to the bottom of the sender and take a second reading:

        • At the bottom of the sender (empty) the resistance should be:

          • European specification - 0 ohms

          • American specification - 240 ohms

      To test the gauge:

      If you have access to the wires on the back of the gauge;

      • Power the gauge off

      • Disconnect the black wire (sender)

      • Power the gauge on

      • If it's an American gauge the needle will show EMPTY

        • Touch the black wire to earth, the needle will go to FULL

      • If it's a European gauge the needle will show FULL

        • Touch the black wire to earth, the needle will go to EMPTY

      If you don't have access to the back of the gauge;

      • Disconnect the two wires in the loom that attach to the sender.

        • If it's an American gauge the needle will show EMPTY

        • If it's a European gauge the needle will show FULL

      Length?

      To measure an S3 or S3H sender (with screw in head) measure from the top of the thread to the bottom of the stem.

      How to measure Wema S3 sender

      To measure an S5 sender (with bolt down head) measure from the underside of the flange to the bottom of the stem

      How to measure Wema S5 sender

      How many wires?

      If your S5 or S3 sender has 2 wires then it is a standard resistance sender.

      If your S5 or S3 sender has 3 or 4 wires then it is either a 0-5v, 0-10v sender or it has a high/low level alarm.

      If you have a 3 or 4 wire sender then please contact us before ordering.

      If your sender has a high or low level alarm we will need to know if the switch is normally off (when the tank is empty), turning on when the tank is full or normally on, turning off when the tank is full. We will also need to know how far from the top or bottom of the sender you would like the alarm switch to be.

      Tank Contents?

      For fuel or water then you can fit the maximum length of sender for your tank.

      For a black water holding tank we recommend leaving at least 50mm from the bottom of the tank regardless of the material the tank is made from.

      If you tank does not contain fuel, fresh water, grey water or black water then please contact us for more specific information. For very thick liquids like oil or grease we may need to know the viscosity.

      Wema Sender Identification Chart
      (click here for larger view)

      Wema Sender Identification Chart
