Engine Oil Pressure Gauge
ANALOGUE OIL PRESSURE GAUGE

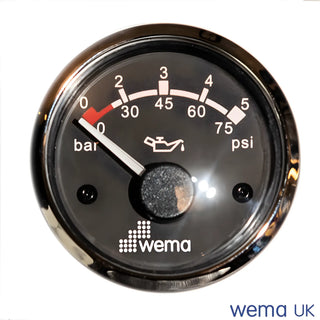

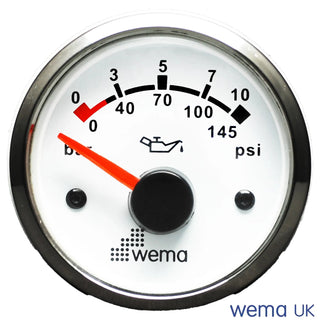

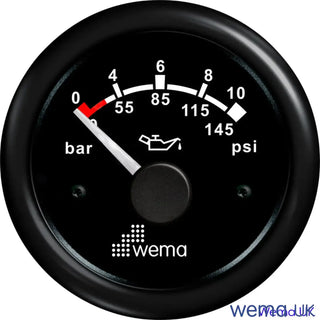

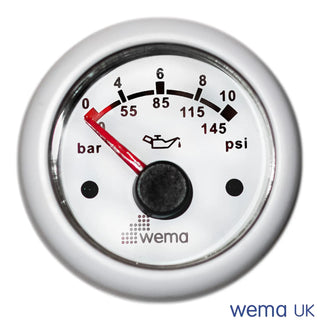

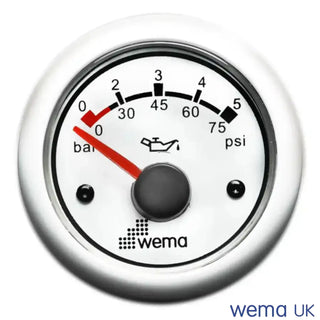

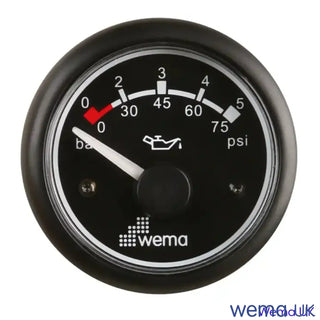

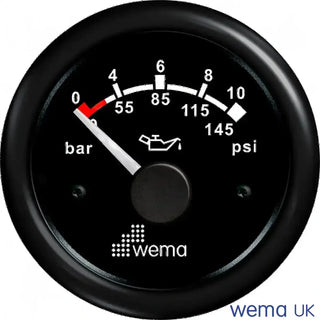

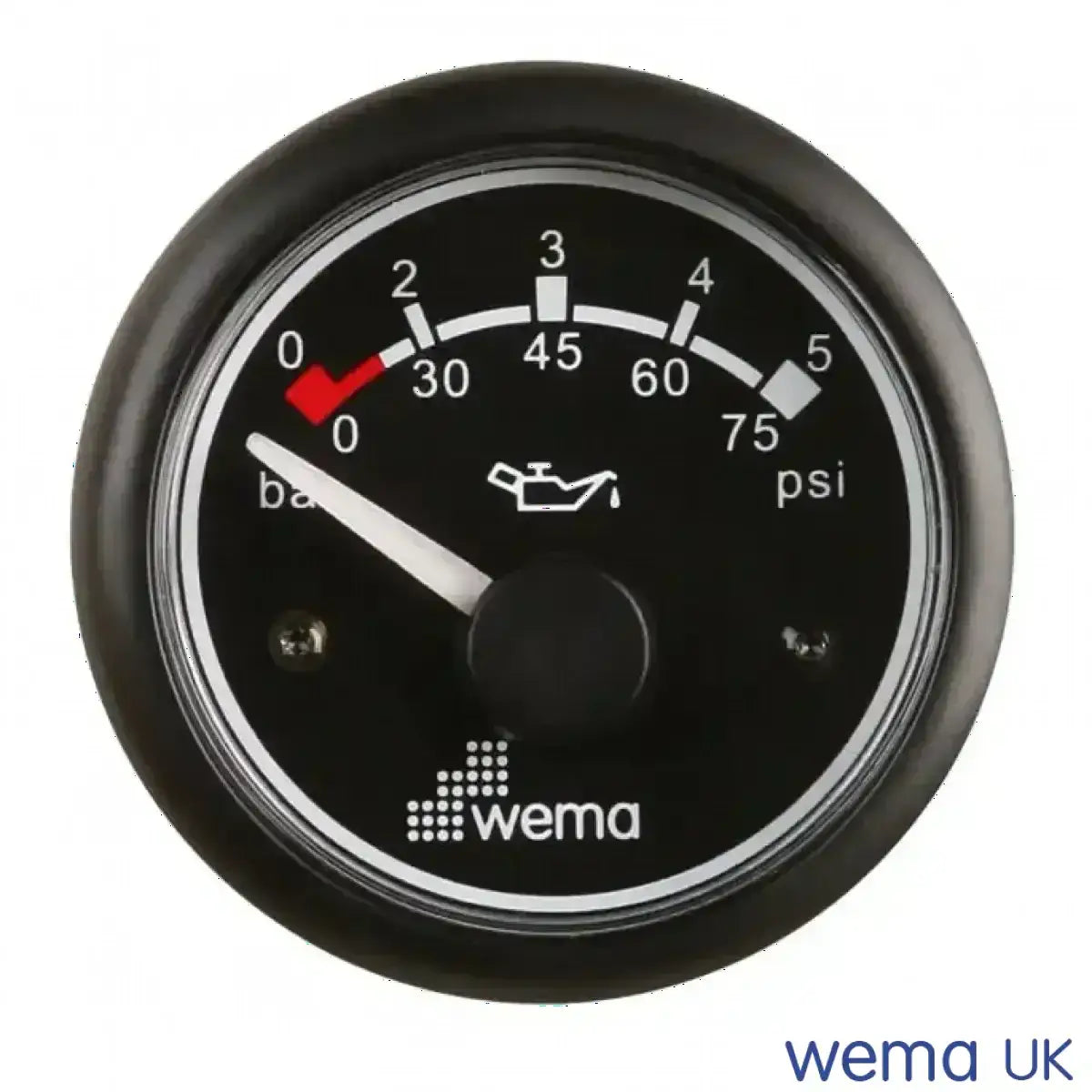

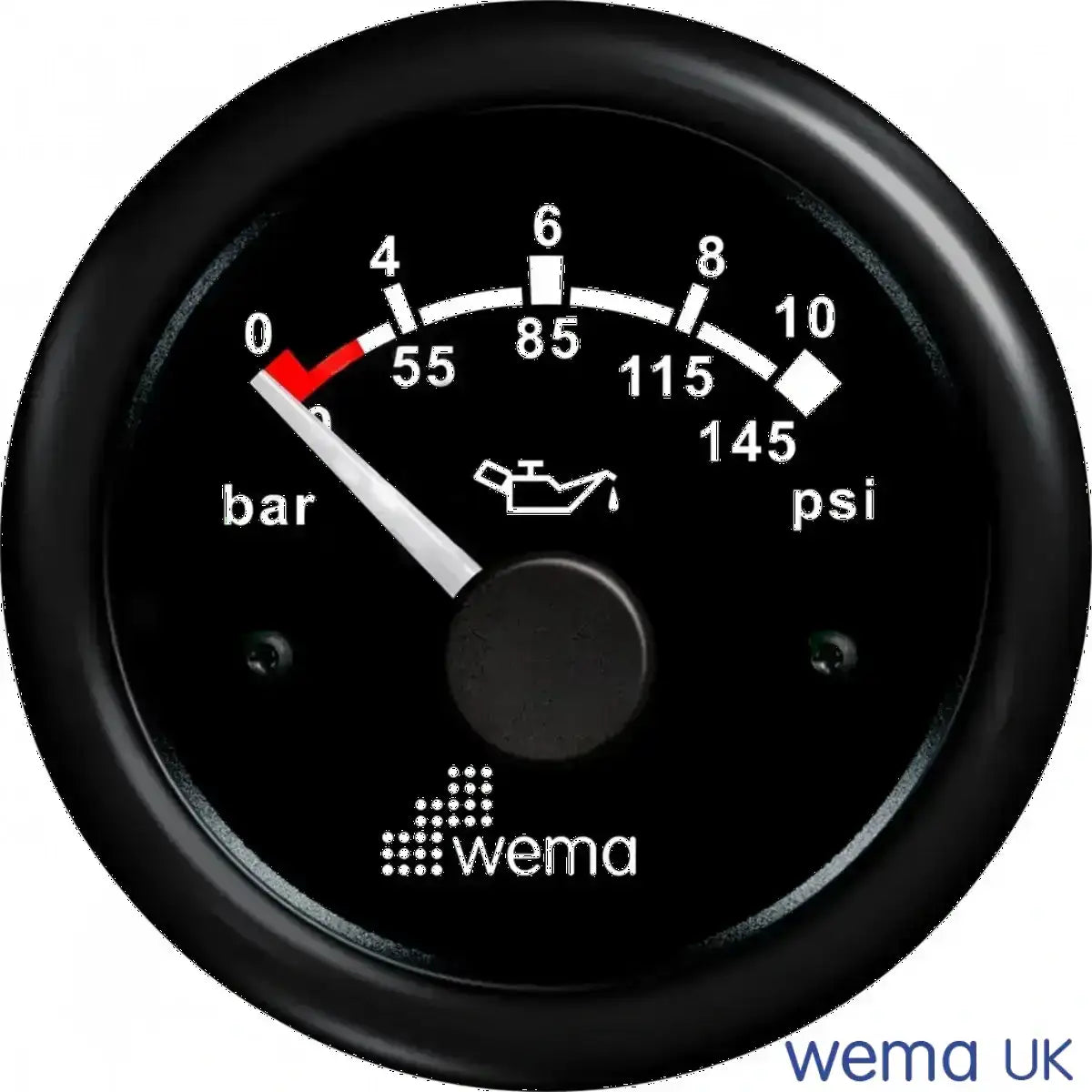

Analogue oil pressure gauge available for 0-5 bar (75 psi) & 0-10 bar (145 psi) applications.
Works with a range of pressure sensors
- Engine oil pressure
- 0-5 Bar or 0-10 Bar
- 52mm diameter gauge
- Choice of colours
Yellow - yellow̴ light
Orange - red light
Black - to sensor
Red - to positive (+)
Blue - to ground (-)
1. Cut a 52mm (2 1/16") diameter hole in the panel.
You will need a minimum clearance of 55mm (2 3/16") behind the panel to fit the gauge.
2. Remove fastening ring and insert gauge through panel from the front, fit and tighten fastening ring from the rear.

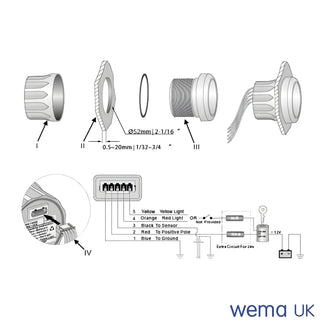

3. Connect wires according to wiring diagram.
Select either Orange or Yellow wires for backlighting. Wire colour corresponds with backlight colour.
* Note the use of dropping resistors for 24V circuit.
4. Insert wire harness into port at the back of the gauge.
