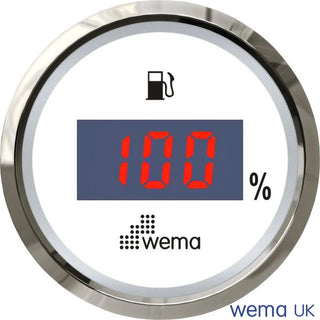

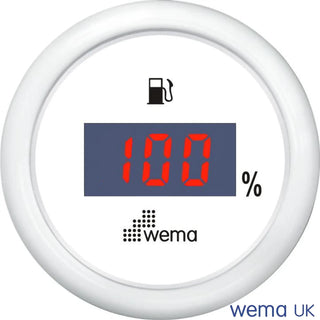

Digital fuel level gauge for monitoring fuel tank level.
Level is displayed in percent.
Works with either S3 or S5 senders.
Available in European (0-190ohms) specification.
Available in all standard face and bezel colours to ensure continuity with all other gauges.
Yellow - yellow̴ lightOrange - red lightBlack - to sensorRed - to positive (+)Blue - to ground (-)
1. Cut a 52mm (2 1/16") diameter hole in the panel. You will need a minimum clearance of 55mm (2 3/16") behind the panel to fit the gauge.
2. Remove fastening ring and insert gauge through panel from the front, fit and tighten fastening ring from the rear.3. Connect wires according to wiring diagram.
Select either Orange or Yellow wires for backlighting. Wire colour corresponds with backlight colour.
* Note the use of dropping resistors for 24V circuit.
4. Insert wire harness into port at the back of the gauge.
